ABB LCD Dijital Güç Ölçer, Tek Fazlı, Sınıf B Doğruluk Dereceli , 4-Dijit

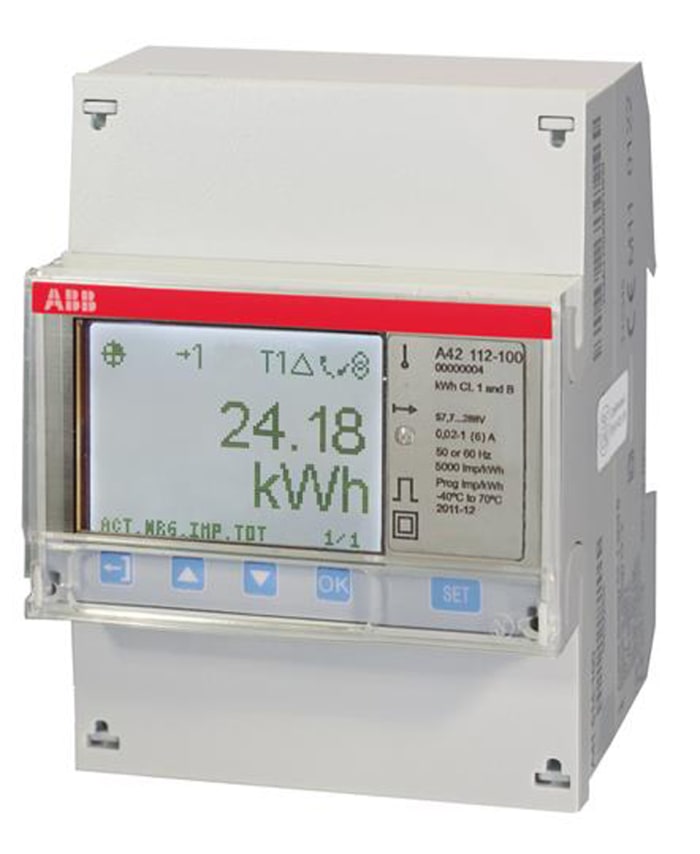

ABB Energy Meter A42 Single-Phase Bronze-Level The A series is a advanced meter product range for installations up to 80 A direct connected or transformer connected both for current and voltage (CT/VT)
The display is pixel-oriented and can display up to four quantities at the same time. Navigating the meter is easily done via the push-buttons below the display.
Data from the A series meters can be collected via pulse output or serial communication.
All meters come with an infrared p

Brand	ABB
Cutter Height	65mm
Cutter Width	70mm
Display Type	LCD
Number of Digits	7
Number of Phases	1
Communication Port Type	Modbus RS485
Number of Outputs	1
Pulse Output	Yes
Depth	65mm
Meter Accuracy	Class B
Minimum Temperature	-40°C
Maximum Temperature+70°C
Meter Type	Electronic
Measurement Range	1 → 999999kWh
Minimum Measurement	1kWh
Approvals	RoHS
Series	A42

2CMA170510R1000 A42 112-100 with product code You can purchase ABB branded ABB LCD Dijital Güç Ölçer, Tek Fazlı, Sınıf B Doğruluk Dereceli , 4-Dijit product from our company.
