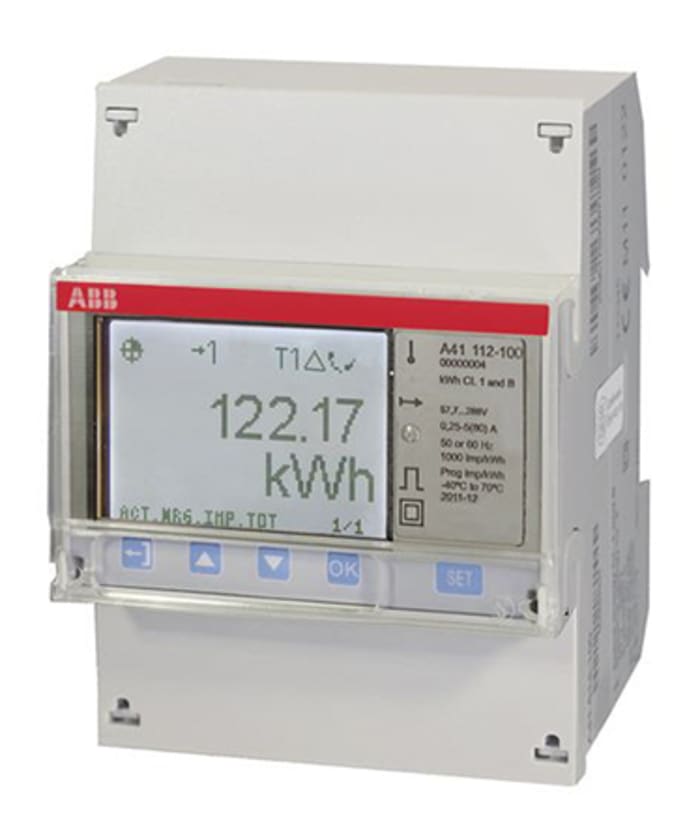

ABB LCD Dijital Güç Ölçer, Tek Fazlı

ABB Energy Meter A41 Single-Phase Steel-Level The A series is an advanced meter product range for installations up to 80 A direct connected or transformer connected both for current and voltage (CT/VT)
The display is pixel-oriented and can display up to four quantities at the same time. Navigating the meter is easily done via the push button below the display.
Data from the A series meters can be collected via pulse output or serial communication.
All meters come with an infrared po

Brand	ABB
Screen Type	LCD
Number of Phases	1
Number of Inputs	1
Number of Outputs	1
Pulse Output	Yes
Depth	65mm
Meter Accuracy	Class 1
Minimum Temperature	-40°C
Maximum Temperature	strong>	+70°C
Meter Type	Electromechanical
Approvals	EN 50470-1, EN 50470-3, EN 55022, GB 4208-2008, GB/T 17215.211-2006, GB/ T 17215.321-2008 Class 1 and 2, GB/T 17215.322-2008 Class 0 and 5 S, IEC 60060-1, IEC 60529, IEC 60695-2-1, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62052-11, IEC 6
Measurement Range	57.7 → 288V ac
Series	A

2CMA170500R1000 A41 112-100 with product code You can purchase ABB branded ABB LCD Dijital Güç Ölçer, Tek Fazlı product from our company.
