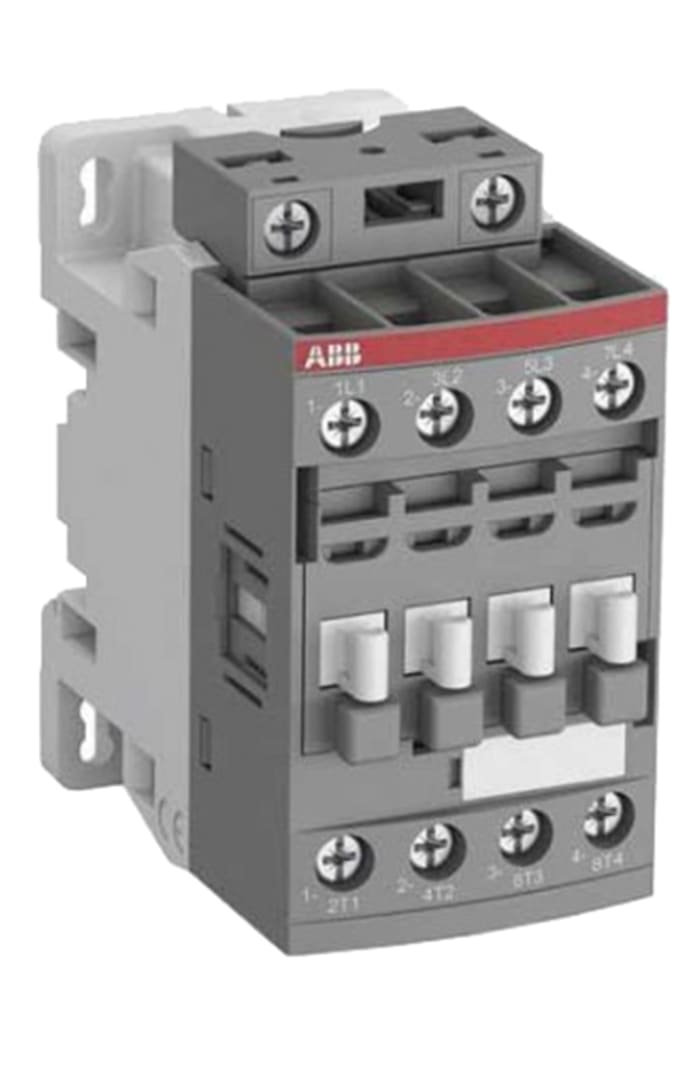

AF40 AF Aralığı Kontaktör, 4 Kutuplu, 70 A, 22 kW, Bobin Gerilimi: 230 V ac

AF Series Contactors ABB Series AF Contactors are primarily used for switching 3-phase motors and controlling power circuits of up to 690V ac or 440V dc. They are also suitable for many other applications such as insulation, switching capacitors and in lighting systems.
The AF series 3 pole contactors are available in a wide range of coil voltages and current ratings and feature a built on auxiliary contact.

Brand	ABB
Coil Voltage	230 V ac
Number of Poles	4
Contact Voltage Value	690 V ac
Contact Current Value	70 A
Range	AF Range
Series	AF09
Power Rating	18.5 kW
Normal Case Configuration	4NO
Number of Auxiliary Contacts	0
Terminal Type	Screw
Length	125.5mm
Width
strong>	70mm
Depth	113.5mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C

1SBL347201R1300 AF40-40-00-13 with product code You can purchase ABB branded AF40 AF Aralığı Kontaktör, 4 Kutuplu, 70 A, 22 kW, Bobin Gerilimi: 230 V ac product from our company.
