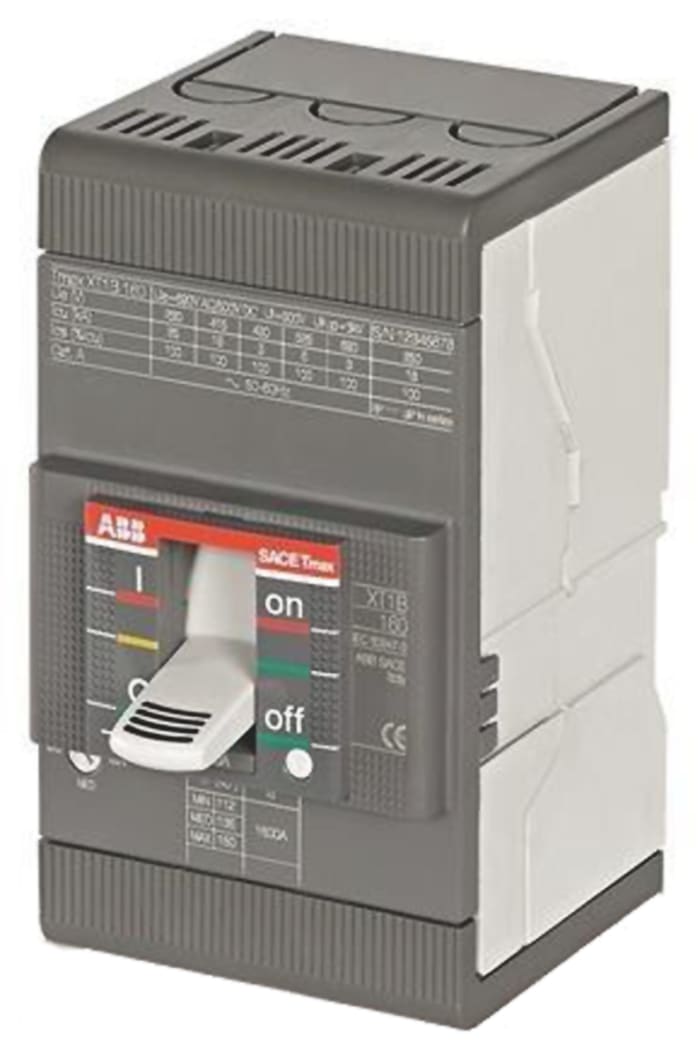

ABB Protecta Termik Manyetik Şalter (MCCB), Kesme Kapasitesi: 36 kA, 63 A, DIN Rayına Monte, 3P

Tmax PV Moulded Case Circuit Breaker Tmax PV is the latest T Generation product: from 160 to 250 A , up to 1100 Vdc.,Tmax PV possesses IEC 60947-3 and IEC 60947-2 certification.,Tmax PV includes 6 different sizes: from the compact T1(which can be mounted on DIN rail) to the high-performance T7, available in the two versions, with lever operating mechanism and motor operator.,Tmax PV reaches a rated insulation voltage up to 1150 Vdc.,Tmax PV includes all the advantages of the T Generation:,excell

Brand	ABB
Range	Protecta
Series	XT1N
Number of Poles	3
Current Rating	63A
Breaking Capacity (At Maximum Voltage Value)	36 kA
Rated AC Voltage	690V
Rated DC Voltage	500V
Mounting Style	DIN Rail Mounted
Length	76.2mm
Width	130mm
Depth	70mm

1SDA067414R1 XT1N 160 TMD 63-630 3p F F with product code You can purchase ABB branded ABB Protecta Termik Manyetik Şalter (MCCB), Kesme Kapasitesi: 36 kA, 63 A, DIN Rayına Monte, 3P product from our company.
