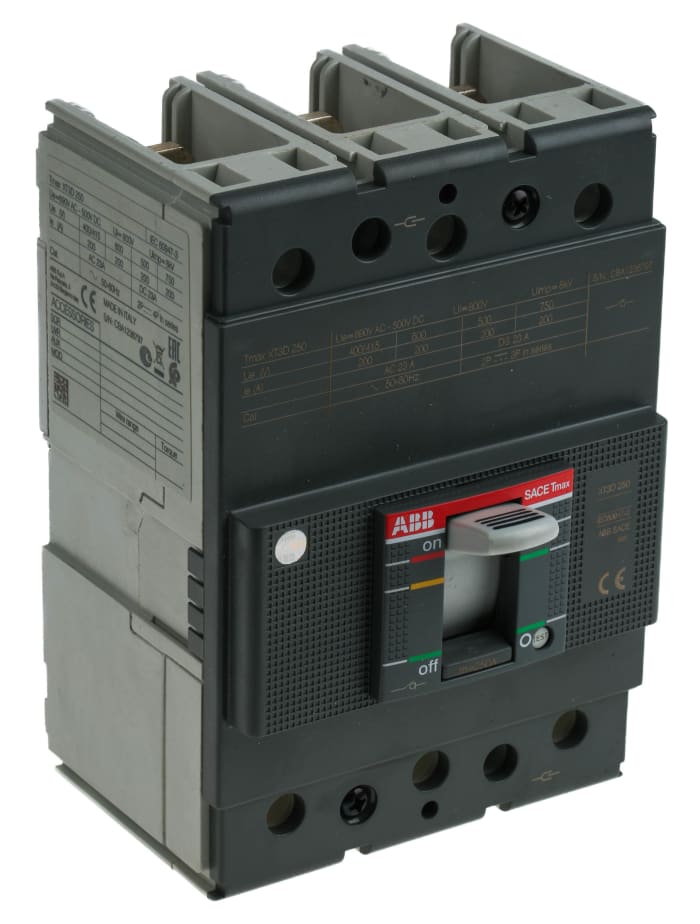

ABB Protecta Termik Manyetik Şalter (MCCB), 250 A, DIN Rayına Monte, 3P

Tmax PV Moulded Case Circuit Breaker Tmax PV is the latest T Generation product: from 160 to 250 A , up to 1100 Vdc.,Tmax PV possesses IEC 60947-3 and IEC 60947-2 certification.,Tmax PV includes 6 different sizes: from the compact T1(which can be mounted on DIN rail) to the high-performance T7, available in the two versions, with lever operating mechanism and motor operator.,Tmax PV reaches a rated insulation voltage up to 1150 Vdc.,Tmax PV includes all the advantages of the T Generation:,excell

Brand	ABB
Range	Protecta
Series	XT3D
Number of Poles	3
Current Rating	250A
Nominal AC Voltage	690V
Nominal DC Voltage	500V
Mounting Style	DIN Rail Mounted
Length	105mm
Width	150mm
Depth	70mm
Circuit Breaker Type	MCCB

1SDA068210R1 XT3D 250 3p F F with product code You can purchase ABB branded ABB Protecta Termik Manyetik Şalter (MCCB), 250 A, DIN Rayına Monte, 3P product from our company.
