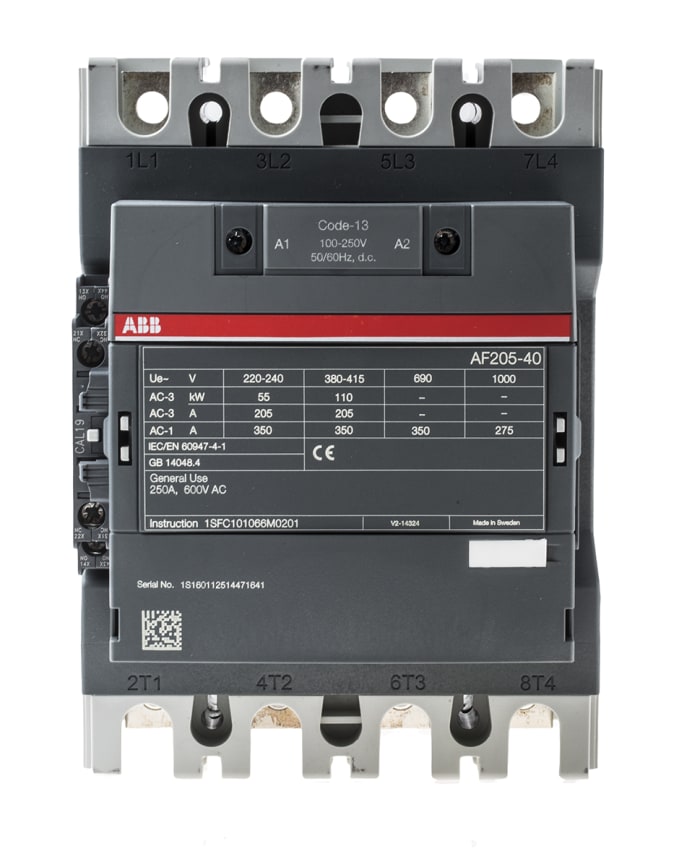

AF205 AF Aralığı Kontaktör, 4 Kutuplu, 350 A, 132 kW, Bobin Gerilimi: 230 V ac

AF Series Contactors ABB Series AF Contactors are primarily used for switching 3-phase motors and controlling power circuits of up to 690V ac or 440V dc. They are also suitable for many other applications such as insulation, switching capacitors and in lighting systems.
The AF series 3 pole contactors are available in a wide range of coil voltages and current ratings and feature a built on auxiliary contact.

Brand	ABB
Coil Voltage	230 V ac
Number of Poles	4
Contact Voltage Value	1 kV
Contact Current Value	350 A
Range	AF Range
Series	AF09
Power Rating	110 kW
Normal State Configuration	4NO
Number of Auxiliary Contacts	1
Terminal Type	Screw
Length	195.6mm
Width	140mm
Depth	152.6mm
Minimum Operating Temperature	-40 °C, -25 °C
Maximum Operating Temperature	strong>	+50 °C, +70 °C

1SFL527102R1311 AF205-40-11-13 with product code You can purchase ABB branded AF205 AF Aralığı Kontaktör, 4 Kutuplu, 350 A, 132 kW, Bobin Gerilimi: 230 V ac product from our company.
