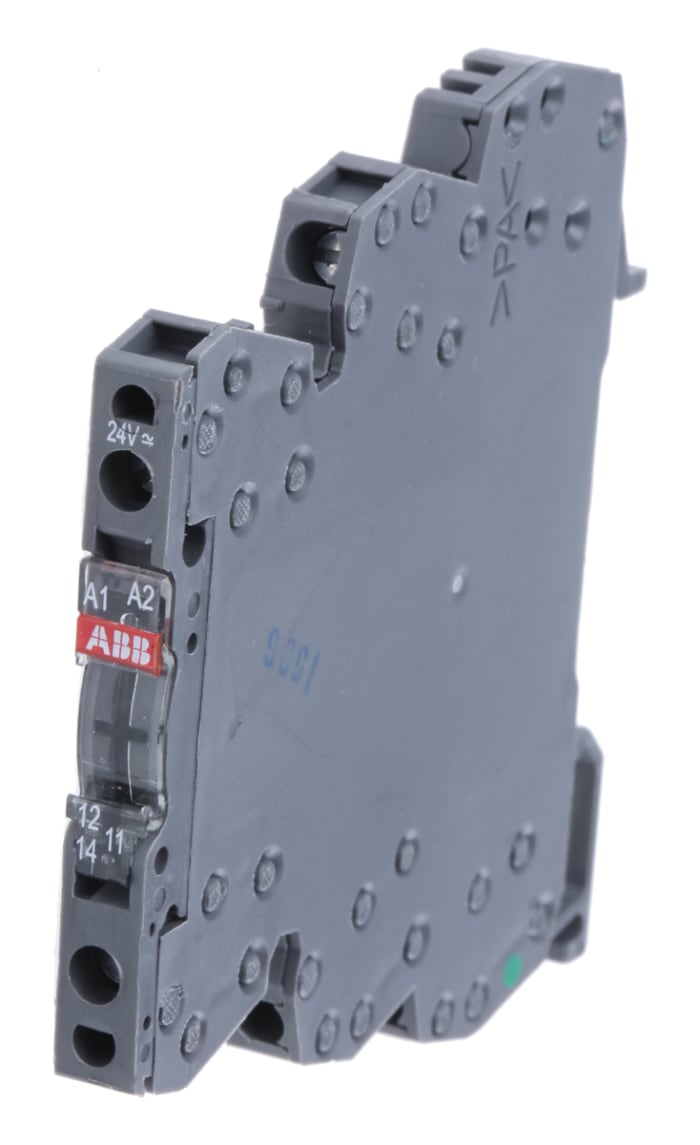

ABB R600 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 3 → 6000mA Load

Interface Relay - R600 Series ABB R600 series interface relays are used for electrical isolation, amplification and signal matching between a PLC, PC or field bus system and the sensor/actuator level. The compact design and different connection terminal possibilities optimise your panel installation.

Brand	ABB
Coil Voltage	24V ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Load Current Rating	3 → 6000mA
Load Voltage Value	24V
Maximum Input Voltage	250V
Minimum Input Voltage	24V
Switching Voltage	24V ac
Terminal Type	Screw
Depth	6mm
Height	75mm
Length	70mm
Series	R600
Input Current	10mA
Other Features	High Levels Flame Retardation
Standards Met	CCC, CE, CSA, cURus
Relay Switching Classification	Interface Relay
Relay Type	Interface Relay
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Dimensions	70 x 6 x 75mm
Closing Time	8ms
Turn-on Time	5ms
Operating Temperature Range	-20 → +70°C
Accessory Type	Interface Relay
Input Voltage Range	24V

1SNA645005R0700 RB121G-24VUC with product code You can purchase ABB branded ABB R600 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 3 → 6000mA Load product from our company.
