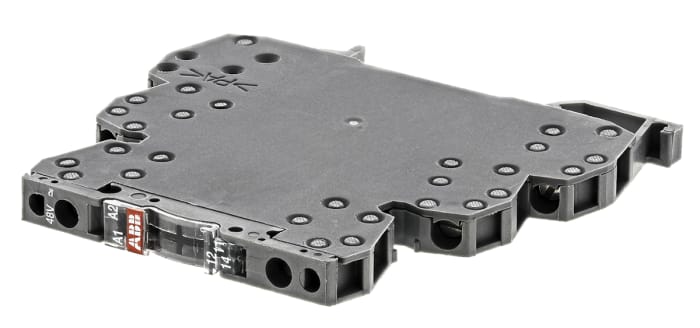

ABB R600 Series Interface Relay, DIN Rail Mount, 48V ac/dc Coil, SPDT, 6A Load

Interface Relay - R600 Series ABB R600 series interface relays are used for electrical isolation, amplification and signal matching between a PLC, PC or field bus system and the sensor/actuator level. The compact design and different connection terminal possibilities optimise your panel installation.

Brand	ABB
Coil Voltage	48V ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Load Current Rating	6A
Maximum Input Voltage	250V ac
Switching Voltage	5 V → 250V ac
Terminal TypeScrew
Depth	6mm
Height	75mm
Length	70mm
Series	R600
Input Current	7 mA, 9 mA
Closing Time	8ms
Turn on Time	5ms
Operating Temperature Range	-20 → +70°C
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Dimensions< /strong>	70 x 6 x 75mm
Origin	TN

1SNA645006R0000 RB121G-48-60VUC with product code You can purchase ABB branded ABB R600 Series Interface Relay, DIN Rail Mount, 48V ac/dc Coil, SPDT, 6A Load product from our company.
