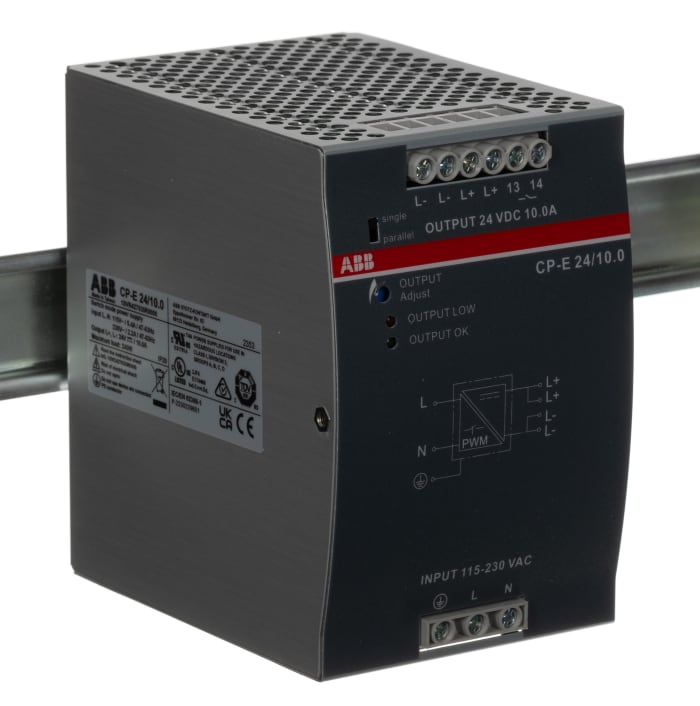

24V dc CP-E DIN Ray Pano Montaj Güç Kaynağı CP-E, 24V dc / 24V dc, 10A 240W, Anahtarlama Modu

Switch mode power supplies CP-E series The CP-E range of DIN Rail PSUs from ABB offer enhanced functionality. The switch mode power supply units are economic and can be operated at an ambient temperature of up to 70°C. With adjustable output voltages, they can also be adapted to the application required.
This range offers output voltages from 5 V dc to 48 V dc at output currents of 06.25 A to 20 A. Thermal efficiency of up to 90% means that there is low power and heat dissipation allowin

Brand	ABB
Type	Switching Mode
Output Voltage	24V dc
Output Current	10A
AC or DC Input Voltageac, dc
AC or DC Output Voltage	dc
Input Voltage	90 → 132V ac
Power Rating	240W
Electric Phase	1
Number of Outlets	1
Height	123.6mm
Width	83mm
Depth
strong>	123.6mm
Series	CP-E
Mounting Type	DIN Rail Mounted
Minimum Temperature	-40°C
Efficiency	89.0%
Ripple and Noise	100mV
Output Voltage Adjustment Range22.5 to 28.5V
Maximum Temperature	+70°C
Standards Met	UL 60950-1

1SVR427035R0000 CP-E 24/10.0 with product code You can purchase ABB branded 24V dc CP-E DIN Ray Pano Montaj Güç Kaynağı CP-E, 24V dc / 24V dc, 10A 240W, Anahtarlama Modu product from our company.
