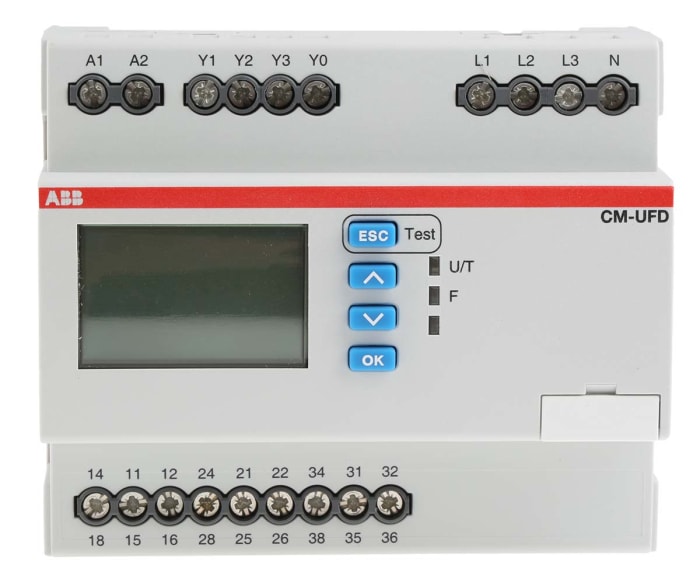

ABB Kontrol Rölesi, SPDT, Frekans, Gerilim, Tek, Üç Fazlı, Besleme Gerilimi: 24 → 240 V ac/dc

CM-UFD Grid Feeding Relays The expertly designed CM-UFD range of grid feeding relays ensures safe and reliable monitoring of numerous grid parameters when feeding energy into the public grid.

Brand	ABB
Tracking Application	Frequency, Voltage
Electric Phase	1, 3
Voltage Detection Range	57.7 → 240 V ac, 99.9 → 415 V dc
Contact Configuration	SPDT
Voltage Sensitivity	Over Voltage, Low Voltage
Mounting Type	DIN Rail
Time Delay	±20ms
Frequency Detection Range	40 → 70Hz
Series	CM-UFD
Other Features	Monitoring of ROCOF (Rate of Change of Frequency), Multiline Backlit LCD Display, Password Setting Protection
Number of Poles	1
Dimensions	108 x 67 x 90mm
Current Range	6.4mA
Minimum Operating Temperature	6.4mA
Minimum Operating Temperature	-20°C
Width	67mm
Maximum Operating Temperature	+60°C
Maximum Detected Voltage	+60°C strong>	415V dc
Height	90mm
Maximum Frequency Sensed	70Hz
Length	108mm
Minimum Detected Voltage	0V ac
Minimum Detected Frequency	40Hz
Operating Temperature Range	- 20 → +60°C
Frequency Sensitivity	Overfrequency, Underfrequency
Terminal Type	Screw
Maximum Temperature Sensed	80°C

1SVR560730R3402 CM-UFD.M33 with product code You can purchase ABB branded ABB Kontrol Rölesi, SPDT, Frekans, Gerilim, Tek, Üç Fazlı, Besleme Gerilimi: 24 → 240 V ac/dc product from our company.
