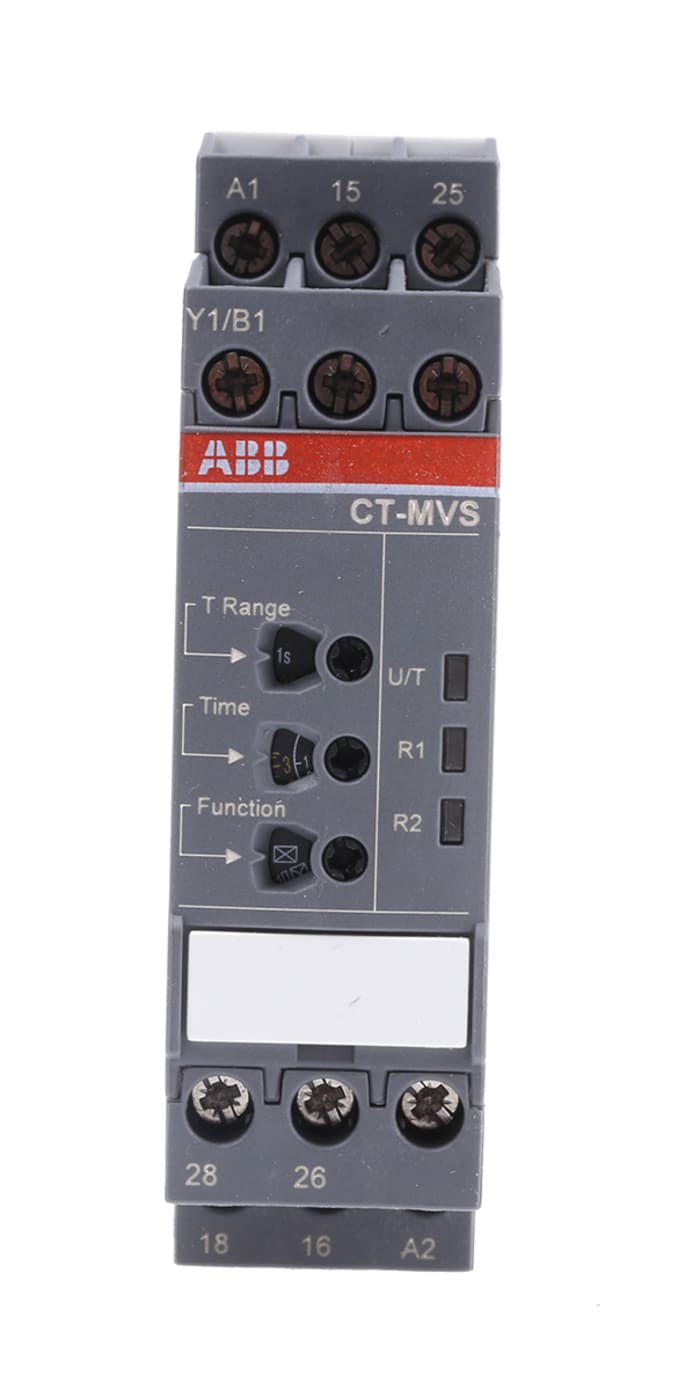

ABB 1SVR Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24 → 48V dc, 2-Contact, 0.05 s → 300h,

CT-MVS Series Multifunctional Timers The CT-MVS Series is a set of multifunctional electronic timers from the CT-S range. They provide 5, 10 or 11 timing functions and 10 or 10 (x2) time ranges which are possible between all models within the series. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool - free Easy Connect

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Accumulative ON Delay, Flash Start with OFF, Flash Start with ON, Impulse OFF with Auxiliary Voltage , Impulse ON, OFF Delay with Auxiliary Voltage, ON Delay, Pulse Former, Star Delta Changeover with Impulse, Symmetrical OFF Delay, Symmetrical ON Delay
Time Interval
strong>	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi-Function
Contact Configuration	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage	300V ac
Switch Configuration	SPDT
< strong>Terminal Type	Screw
Power Supply	External
Width	22.5mm
Minimum Voltage	12V
Length	85.6mm
Series	1SVR
Maximum Operating Temperature	+60°C
Minimum Current Value	0.01A
Depth	113.4mm
Contact Material	Cadmium Free
Minimum Operating Temperature	-25°C
Time Delay	(Recovery) <80ms
Origin	DE

1SVR730020R3300 CT-MVS.22S with product code You can purchase ABB branded ABB 1SVR Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24 → 48V dc, 2-Contact, 0.05 s → 300h, product from our company.
