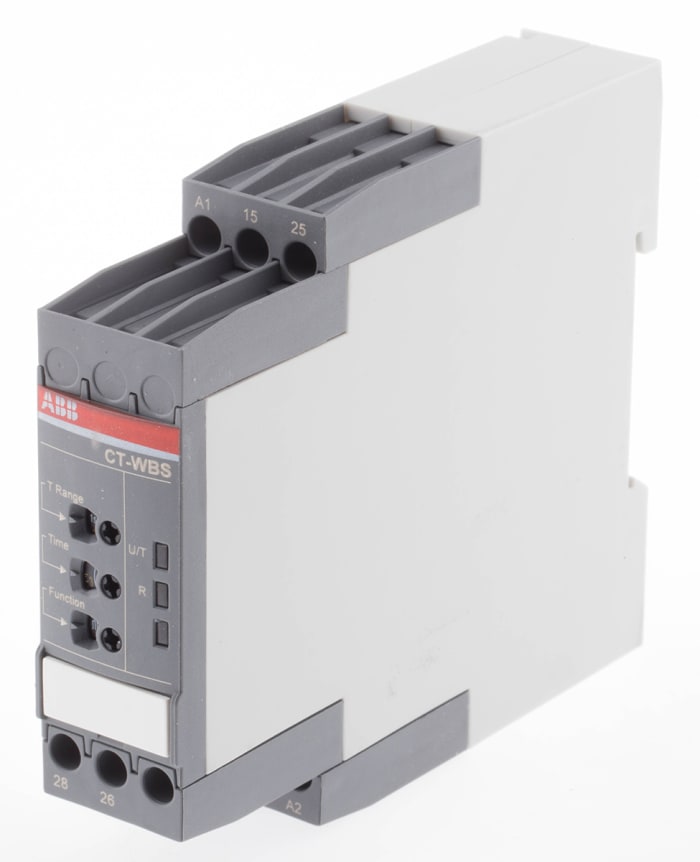

ABB Zaman Rölesi, DPDT, Vida, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-WBS Series Impulse Timers The CT-WBS series is a multifunctional electronic timer set from the CT-S range. The series provides up to 10 timing functions and 10 time ranges. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double-chamber cage connection terminals) and the completely tool free Easy Connect Technology (push-in terminals).

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Adjustable Impulse with Fixed Time Relay, Fixed Impulse with Adjustable Time Relay, Flash Start with OFF, Flash Start with ON, Impulse ON, ON Delay
Time Interval	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multifunction
Contact Configuration	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage	300V ac
< strong>Switch Configuration	SPDT
Terminal Type	Screw
Power Supply	External
Width	22.5mm
Minimum Voltage	12V
Length	85.6mm
Minimum Current Rating	10mA
Depth	113.4mm
Contact Material	Cadmium Free
Time Delay	(Recovery) < 80ms
Origin	DE

1SVR730040R3300 CT-WBS.22S with product code You can purchase ABB branded ABB Zaman Rölesi, DPDT, Vida, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
