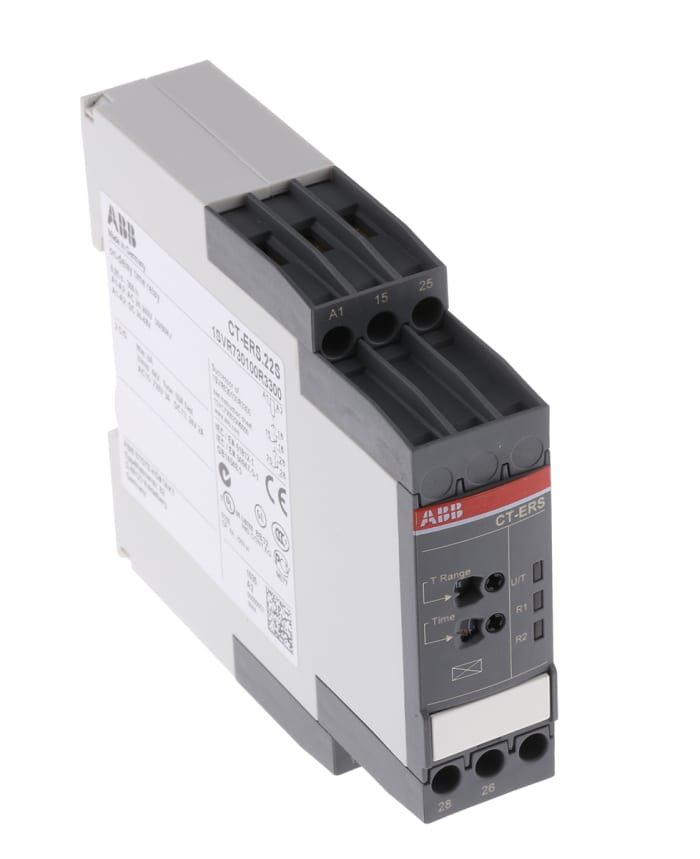

ABB Zaman Rölesi, 24 → 48 V dc

CT-ERS Series On Delay Timers The CT-ERS Series is an electronic timer series from the CT-S range with true ON - delay and 10 time ranges. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool free Easy Connect Technology (push-in terminals). This is denoted by either a "P" or "S" at the end of each manufacturer's part numbe

Brand	ABB
Maximum Voltage	24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	ON Delay
Time Interval	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Single
Time Increment	Hour, Second
Maximum Voltage	48V dc
Power Supply	External
Width	22.5 mm
Minimum Voltage	24V dc
Depth	113.4mm
Length	85.6mm
Time Delay	<80 (Recovery)ms
Origin< /strong>	DE

1SVR730100R3300 CT-ERS.22S with product code You can purchase ABB branded ABB Zaman Rölesi, 24 → 48 V dc product from our company.
