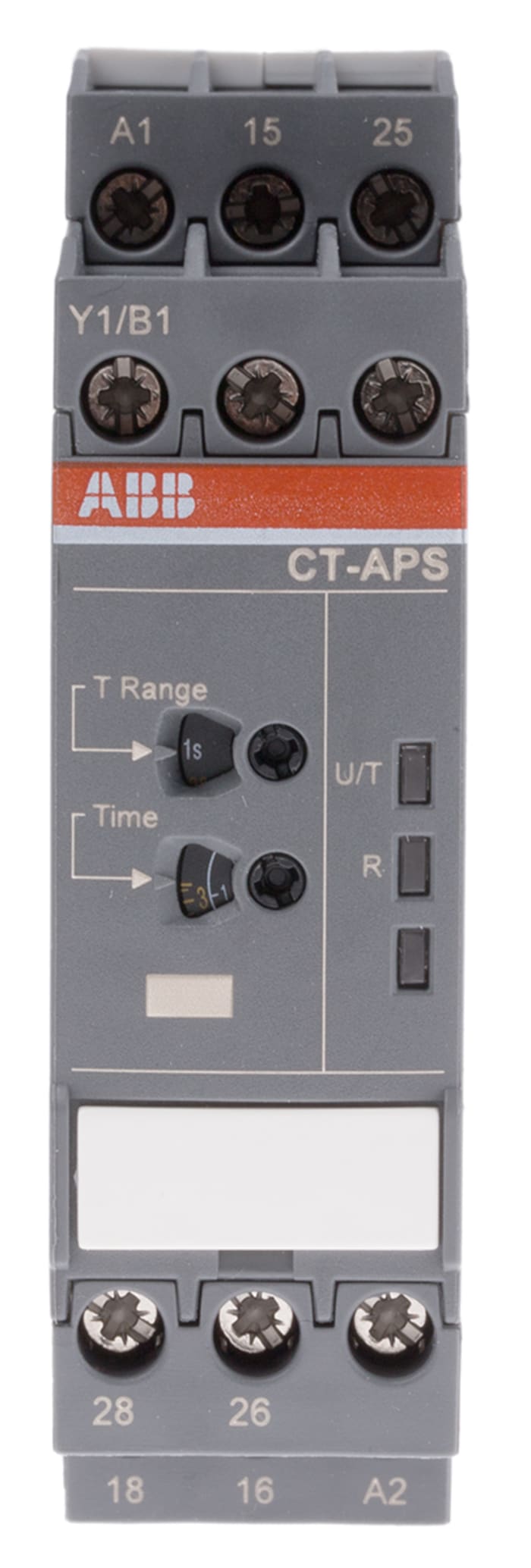

ABB Zaman Rölesi, DPDT, Vida, 2 Kontaklı, Tekli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-APS Series Off Delay Timers The CT-APS series is an electronic timer series from the CT-S range with true OFF-delay including 10 selectable time
ranges. All electronic timers from the CT-S range are available with two different terminal versions.

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	OFF Delay
Time Interval	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration< /strong>	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage300V ac
Switch Configuration	SPDT
Terminal Type	Screw
Power Supply	External
Width	22.5mm
Minimum Voltage	12V
Length	85.6mm
Minimum Current Value	10mA
Depth	113.4mm
Contact Material	Cadmium Free
Time Delay	(Recovery) <80ms
Origin	DE

1SVR730180R3300 CT-APS.22S with product code You can purchase ABB branded ABB Zaman Rölesi, DPDT, Vida, 2 Kontaklı, Tekli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
