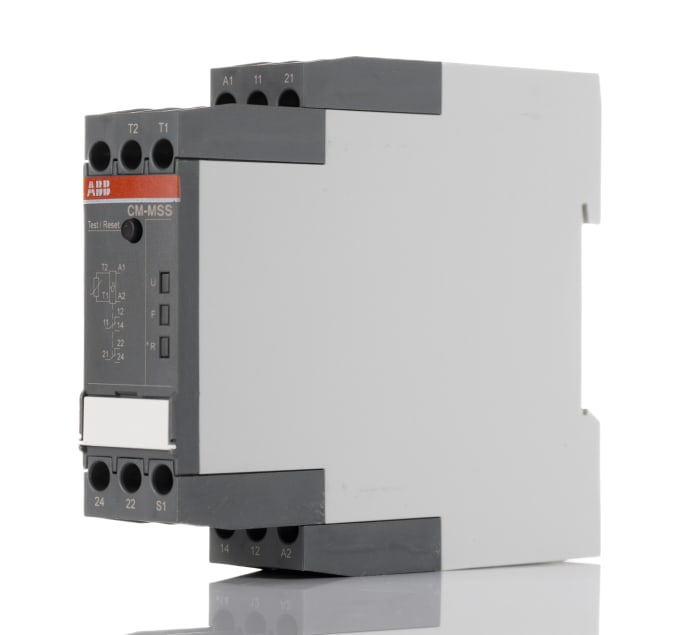

| Brand | ABB |
| Tracking Application | Temperature |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Time Delay | <100ms |
| Frequency Detection Range | 50 → 60Hz |
| Temperature Sensitivity | Overtemperature, Winding Temperature |
| Hazardous Area Certificate | ATEX |
| Series | CM-MSS |
| Terminal Type | Screw |
| Other Features | Fail-Safe , Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit |
| Standards Met | UL |
| Number of Poles | 1 |
| Minimum Operating Temperature | -25°C |
| Width | 22.5mm |
| Maximum Operating Temperature | +60°C |
| Dimensions | 103.7 x 22.5 x 85.6mm |
| Current Range | Maximum of 3.7mA |
| Height | 85.6mm |
| Length | 103.7mm |
| Minimum Detected Frequency | 50Hz |
| Operating Temperature Range | -25 → +60°C |
