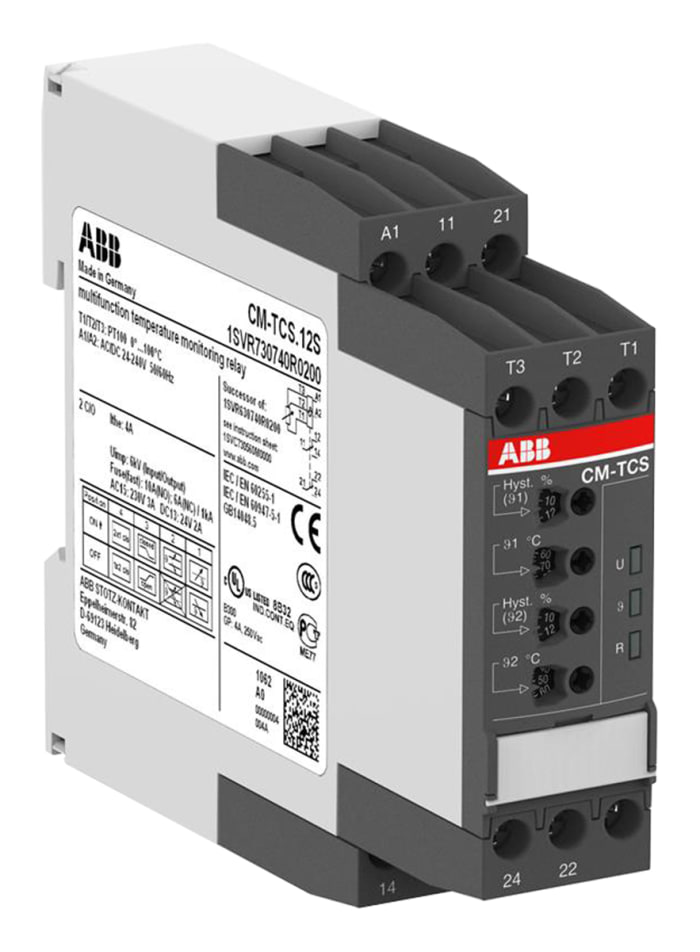

ABB Temperature Monitoring Relay, 3 Phase, SPDT, DIN Rail

CM-TCS Temperature Monitoring Relays The temperature monitoring relays CM-TCS monitor over-temperature, under-temperature, or temperatures between two threshold values with PT100 sensor. When the temperature falls below, or exceeds the maximum value, the output relays instantaneously change their positions according to the configured functionality. The front-face LED will display the current status.

Brand	ABB
Tracking Application	Temperature
Electric Phase	3
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	20ms
Frequency Detection Range	13.5 → 440Hz
Temperature Sensitivity	Overtemperature, Temperature Window Monitoring, Undertemperature
Temperature Sensing Range	0 → +100°C
Series	CM-TCS
Other Features	5 LEDs for the Indication of Operational StatesValues, All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold
< strong>Number of Poles	1
Minimum Operating Temperature	-40° C
Minimum Detected Frequency	13.5Hz
Operating Temperature Range	+60°C
Minimum Temperature Sensed	0°C
Terminal Type	Screw
Width	22.5mm
Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
< strong>Maximum Temperature Sensed	+100°C
Altitude	85.6 mm
Maximum Frequency Sensed	440Hz
Length	103.7mm

1SVR730740R0200 CM-TCS.12S with product code You can purchase ABB branded ABB Temperature Monitoring Relay, 3 Phase, SPDT, DIN Rail product from our company.
