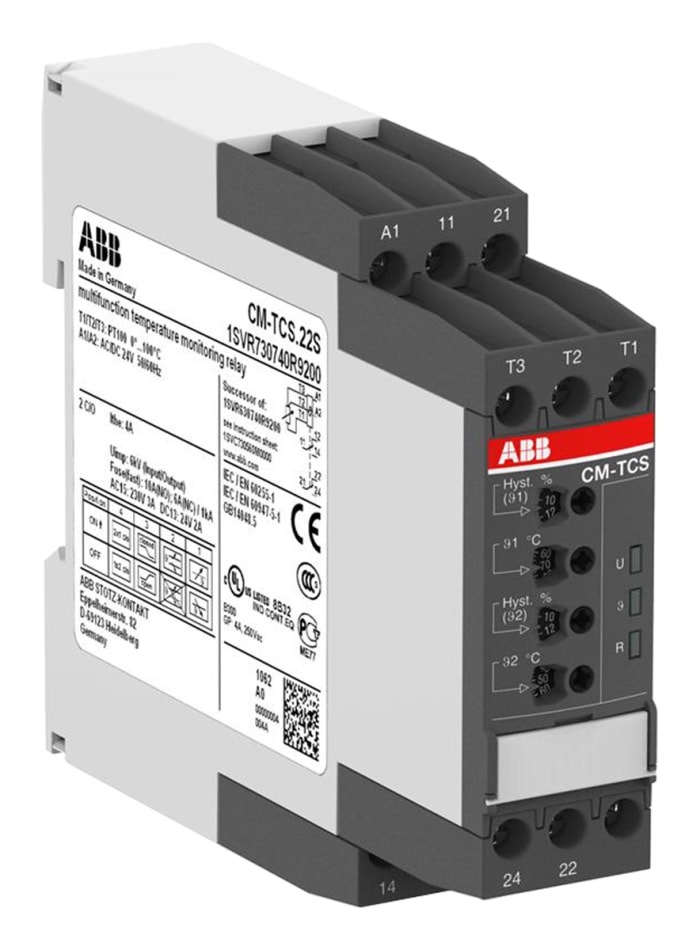

ABB Temperature Monitoring Relay, 3 Phase, SPDT, DIN Rail

CM-TCS Temperature Monitoring Relays The temperature monitoring relays CM-TCS monitor over-temperature, under-temperature, or temperatures between two threshold values with PT100 sensor. When the temperature falls below, or exceeds the maximum value, the output relays instantaneously change their positions according to the configured functionality. The front-face LED will display the current status.

Brand	ABB
Tracking Application	Temperature
Electric Phase	3
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	20ms
Frequency Sensing Range	45 → 65Hz
Temperature Sensing Range	0 → +100°C
Temperature Sensitivity	Overtemperature, Temperature Window Monitoring, Undertemperature
Series	CM-TCS
Maximum Frequency Sensed65Hz
Length	103.7mm
Minimum Detected Frequency	45Hz
Operating Temperature Range	+60°C
Minimum Temperature Sensed	0°C
Terminal Type	Screw
Other Features	12 LEDs for the Indication of Operational States, All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold Values, Precise Adjustment With Direct Reading Scales
Number of Poles	1
Minimum Operating Temperature	-40°C
Width	22.5mm
< strong>Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
Maximum Temperature Sensed	+100°C
Height	85.6mm

1SVR730740R9200 CM-TCS.22S with product code You can purchase ABB branded ABB Temperature Monitoring Relay, 3 Phase, SPDT, DIN Rail product from our company.
