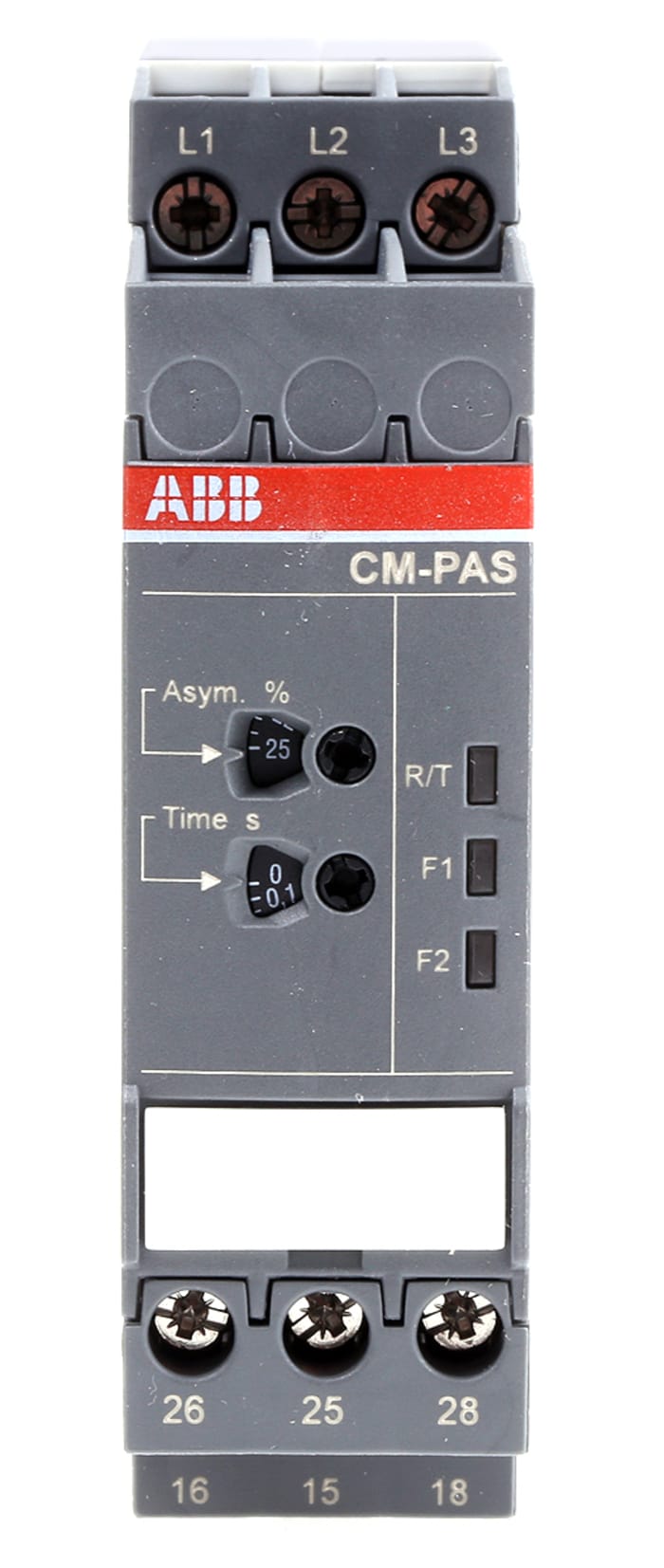

ABB Kontrol Rölesi, DPDT, Faz, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac

CM-PAS Three-Phase Monitoring Relays The CM-PAS.x1 are monitoring relays for three-phase mains. They monitor the phase parameters phase sequence, phase failure and phase unbalance. The threshold value for phase unbalance is adjustable

Brand	ABB
Tracking Application	Phase
Electric Phase	3
Contact Configuration	DPDT
Voltage Detection Range	300 → 500V ac
Mounting Type	DIN Rail
Phase Sensitivity	Phase Failure, Phase Imbalance, Phase Sequence
Time Delay	0.1 → 30 s, 0s
Frequency Detection Range	50 → 60Hz
Series	CM-PAS
Height	85.6mm
Length	103.7mm
Operating Temperature Range	-25 → +60°C
Terminal Type	Screw
Standards Met	UL
Minimum Operating Temperature	-25°C
Width	22.5mm
Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
Current Range	2 → 4A
Origin	DE

1SVR730774R3300 CM-PAS.41S with product code You can purchase ABB branded ABB Kontrol Rölesi, DPDT, Faz, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac product from our company.
