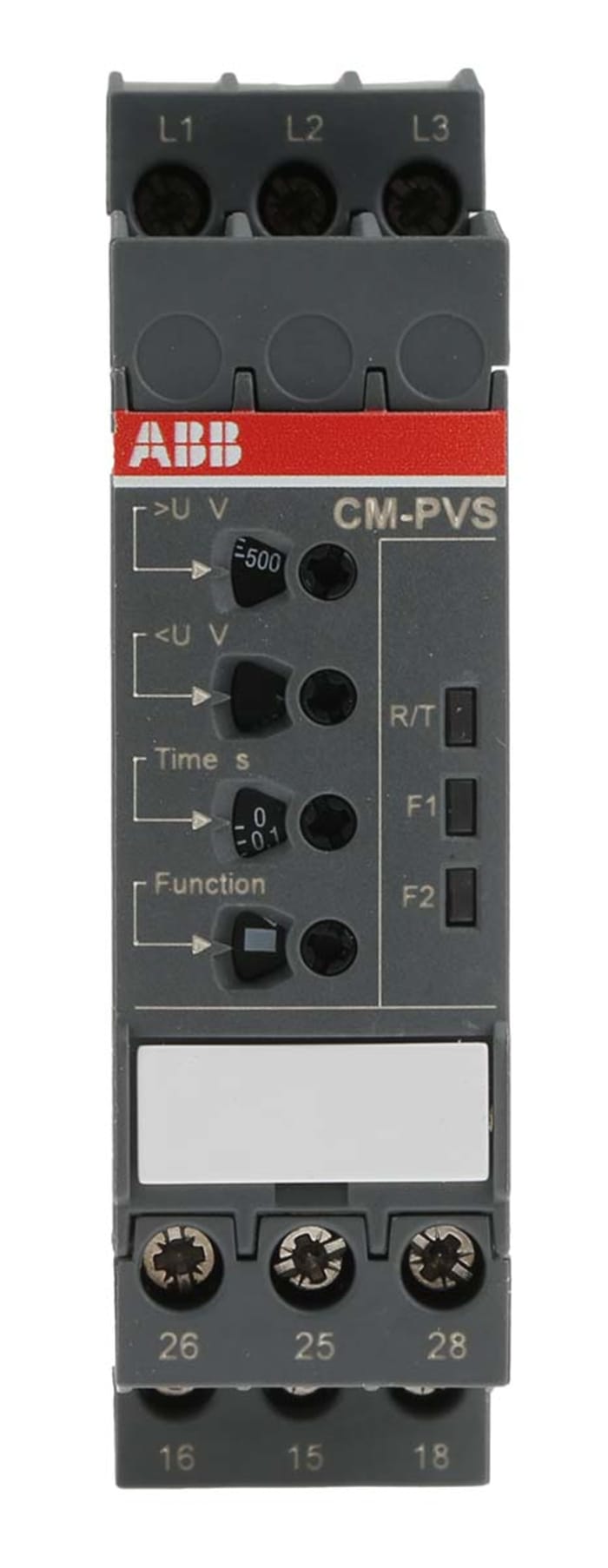

ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac

CM-PVS Three-Phase Monitoring Relays The CM-PVS.x1 are monitoring relays for three-phase mains. They monitor the phase parameters phase sequence, phase failure, over- and undervoltage. The threshold values for over- and undervoltage are adjustable.

Brand	ABB
Tracking Application	Phase, Voltage
Electric Phase	3
Contact Configuration	DPDT
Voltage Detection Range	300 → 500V ac
Voltage Sensitivity	Over Voltage, Under Voltage
Mounting Type	DIN Rail
Phase SensitivityPhase Failure, Phase Sequence
Time Delay	0.1 → 30 s, 0s
Frequency Detection Range	45 → 65Hz
Series	strong>	CM-PVS
Minimum Detected Voltage	300V ac
Operating Temperature Range	+60°C
Terminal Type< /strong>	Screw
Minimum Operating Temperature	-25°C
Width	22.5mm
Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
Maximum Detected Voltage	500V ac
Height	strong>	85.6mm
Length	103.7mm
Origin	DE

1SVR730794R3300 CM-PVS.41S with product code You can purchase ABB branded ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac product from our company.
