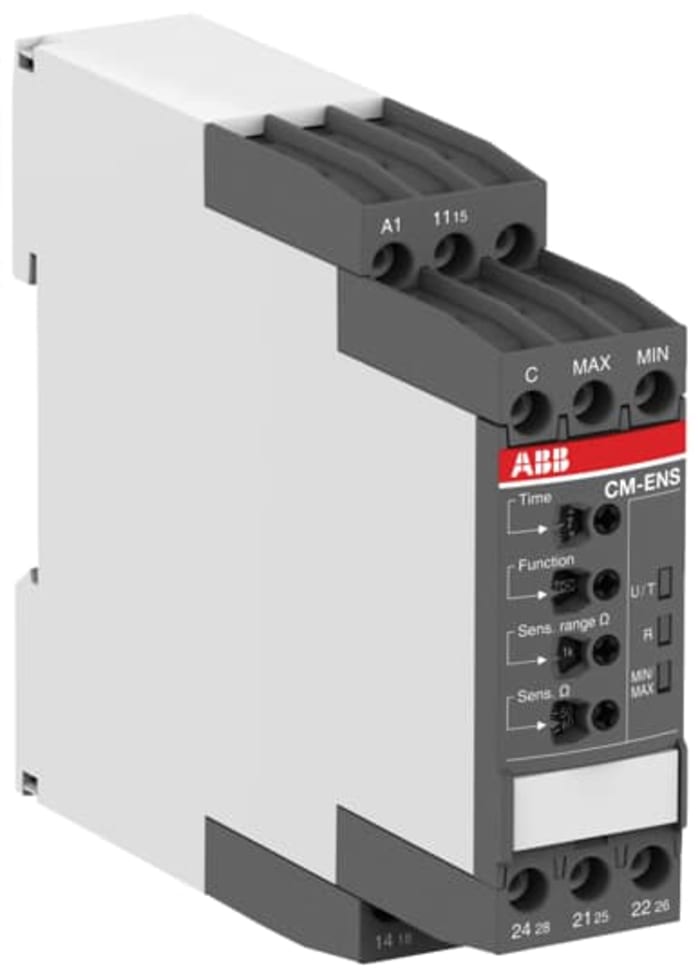

ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay

CM-ENS Liquid Level Relays A series of liquid level control relays from ABB for conductive liquids. The CM-ENS range gives a choice of 3 variants each with a compact, space saving housing with the highest fire protection and environmentally friendly materials. Installation is quick and easy using screw or easy-connect terminals and tool free DIN Rail mounting.

Brand	ABB
Number of Entries	1
Mounting Style	Din Rail
Supply Voltage	24 → 240 V ac/dc
Total Length	113.4mm
Total Width	22.5mm
Total Depth	113.4mm
Minimum Operating Temperature-25°C
Maximum Operating Temperature	+60°C
Standards Met	CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508
Series	CM -ENS
Termination Type	Screw
IP Rating	IP20 (Terminal), IP50 (Enclosure)
Output Type	SPDT Relay
Current Value	11 mA
Number of Outputs	1
Insulation Voltage	300 (Supply Circuit)V
Sensitivity	0.1 → 1000 kΩ
Input Type	Voltage
Origin	DE

1SVR730850R0300 CM-ENS.31S with product code You can purchase ABB branded ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay product from our company.
