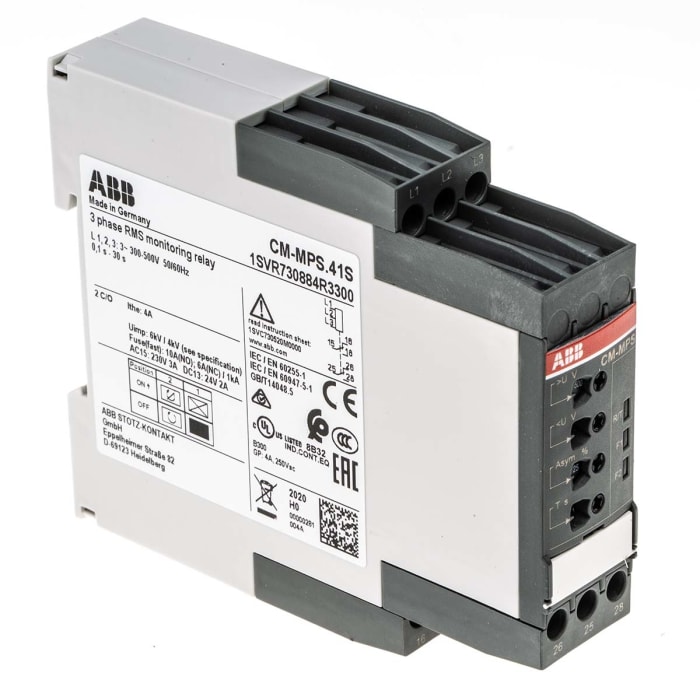

ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac

CM-MPS x3 Multifunctional Three-Phase Monitoring Relays The CM-MPSx3 are multifunctional monitoring relays for three-phase mains. They monitor the phase parameters phase sequence, phase failure, over- and undervoltage and phase unbalance. CM-MPS.23 also monitors the neutral for interruption. The threshold values for over and undervoltage and phase unbalance are adjustable. CM-MPS.23 is also suitable for monitoring single-phase mains. For this, all three external conductors (L1, L2, L3) have to b

Brand	ABB
Tracking Application	Phase, Voltage
Electric Phase	3
Voltage Detection Range	300 → 500V ac
Contact Configuration	DPDT
Voltage Sensitivity	Over Voltage, Under Voltage
Mounting Type	DIN Rail
Phase SensitivityPhase Failure, Phase Imbalance, Phase Sequence
Time Delay	0.1 → 30 s, 0s
Frequency Detection Range	45 → 65Hz
Series	CM-MPS
Dimensions	103.7 x 22.5 x 85.6mm
Current Range	2 → 4A
Maximum Detected Voltage	500V ac
Length	103.7mm
Minimum Detected Voltage	300V ac
Operating Temperature Range	-25 → +60°C
Terminal Type	Screw
Standards Met	UL
Minimum Operating Temperature	-25°C
Width	22.5mm
Maximum Operating Temperature	+60°C
Altitude< /strong>	85.6mm
Origin	DE

1SVR730884R3300 CM-MPS.41S with product code You can purchase ABB branded ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 300 → 500 V ac product from our company.
