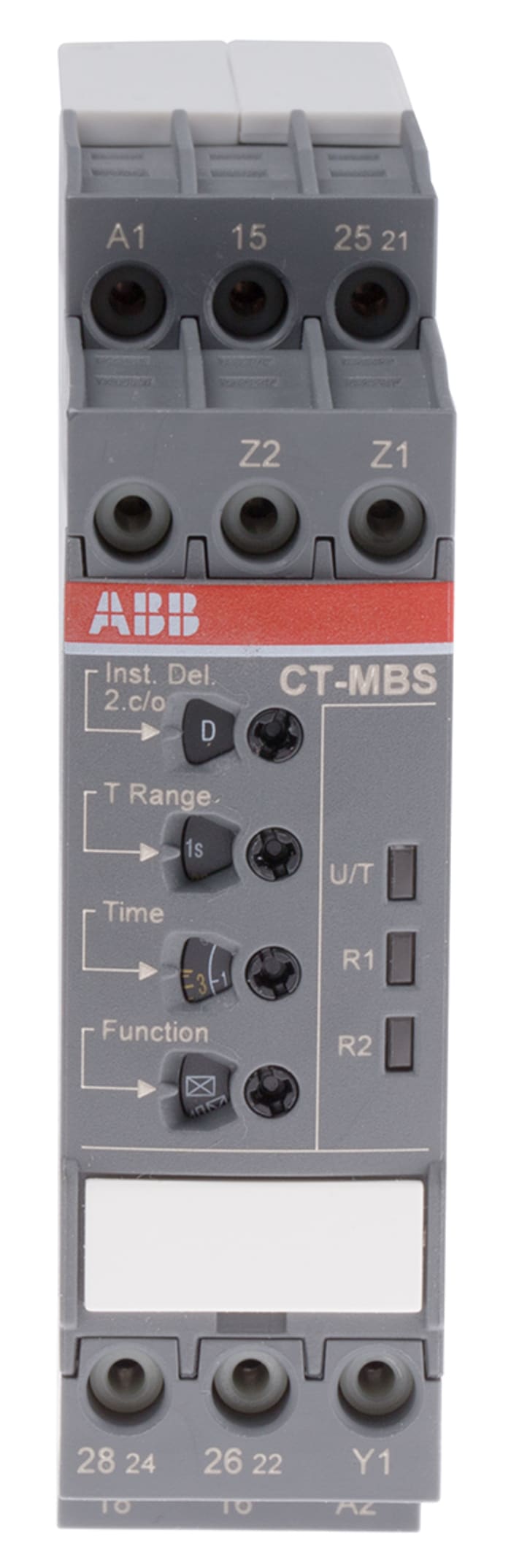

ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-MBS Series Multifunctional Timers The CT-MBS series is a set multifunctional electronic timers from the CT-S range. The series can provide up to 10 timing functions and 10 time ranges. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double-chamber cage connection terminals) and the completely tool free Easy Connect Technology (push-in terminals).

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Flash Start with OFF, Flash Start with ON, Impulse OFF with Auxiliary Voltage, Impulse ON, OFF Delay with Auxiliary Voltage, ON Delay, Pulse Former, Star Delta Changeover with Impulse, Symmetrical OFF Delay, Symmetrical ON Delay
Time Interval0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi-Function
Contact Configuration	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage	300V ac
Switch Configuration	SPDT
Terminal Type	Push Insertion
Minimum Voltage	12V
Power Supply	External
Width	22.5mm
Length	85.6mm
Minimum Current Value	10mA
Depth	113.4mm
Time Delay	(Recovery) <80ms
< strong>Contact Material	Cadmium Free

1SVR740010R3200 CT-MBS.22P with product code You can purchase ABB branded ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
