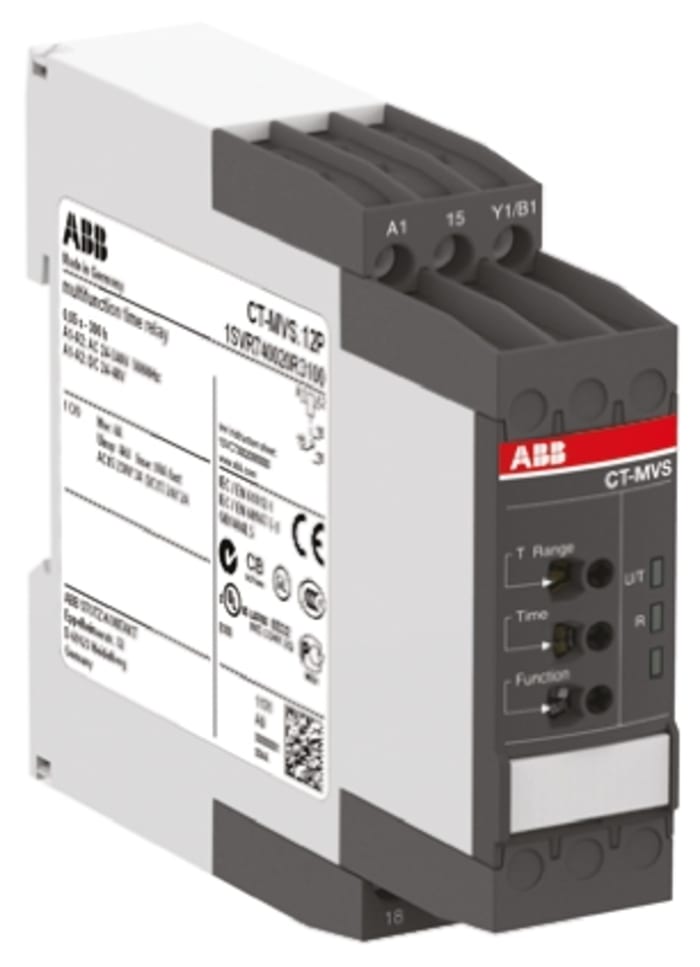

ABB Zaman Rölesi, SPDT, Geçirmeli, Tek Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-MVS Series Multifunctional Timers The CT-MVS Series is a set of multifunctional electronic timers from the CT-S range. They provide 5, 10 or 11 timing functions and 10 or 10 (x2) time ranges which are possible between all models within the series. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool - free Easy Connect

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Accumulative ON Delay, Flash Start with OFF, Flash Start with ON, Impulse OFF with Auxiliary Voltage , Impulse ON, OFF Delay with Auxiliary Voltage, ON Delay, Pulse Former, Symmetrical OFF Delay, Symmetrical ON Delay
Time Interval	0.05 s → 300h
Number of Contacts	1
Number of Timer Functions	Multi-Function
Contact Configuration	SPDT
Time Increment	Hour, Seconds
< strong>Maximum Current	4A
Maximum Voltage	300V ac
Switch Configuration	SPDT
Terminal Type	strong>	Push Insertion
Minimum Voltage	12V
Power Supply	External
Width	22.5mm
Length	85.6mm
< strong>Minimum Current Value	10mA
Depth	113.4mm
Time Delay	(Recovery) <80ms
Contact Material	Cadmium Free

1SVR740020R3100 CT-MVS.12P with product code You can purchase ABB branded ABB Zaman Rölesi, SPDT, Geçirmeli, Tek Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
