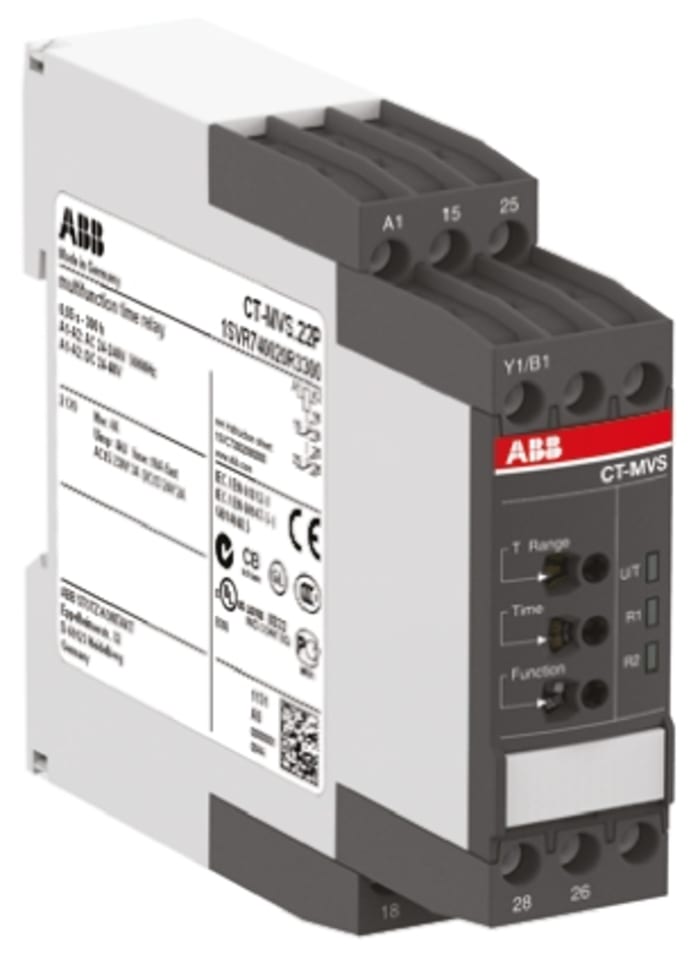

ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-MVS Series Multifunctional Timers The CT-MVS Series is a set of multifunctional electronic timers from the CT-S range. They provide 5, 10 or 11 timing functions and 10 or 10 (x2) time ranges which are possible between all models within the series. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool - free Easy Connect

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Accumulative ON Delay, Flash Start with OFF, Flash Start with ON, Impulse OFF with Auxiliary Voltage , Impulse ON, OFF Delay with Auxiliary Voltage, ON Delay, Pulse Former, Star Delta Changeover with Impulse, Symmetrical OFF Delay, Symmetrical ON Delay
Time Interval
strong>	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi-Function
Contact Configuration	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage	300V ac
Terminal Type	Push In
Switch Configuration	SPDT
Width	22.5mm
Minimum Voltage	12V
Power Supply	12V strong>	External
Minimum Current Value	10mA
Depth	113.4mm
Length	85.6mm
Contact Material	Cadmium Free
Time Delay	(Recovery) <80ms

1SVR740020R3300 CT-MVS.22P with product code You can purchase ABB branded ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
