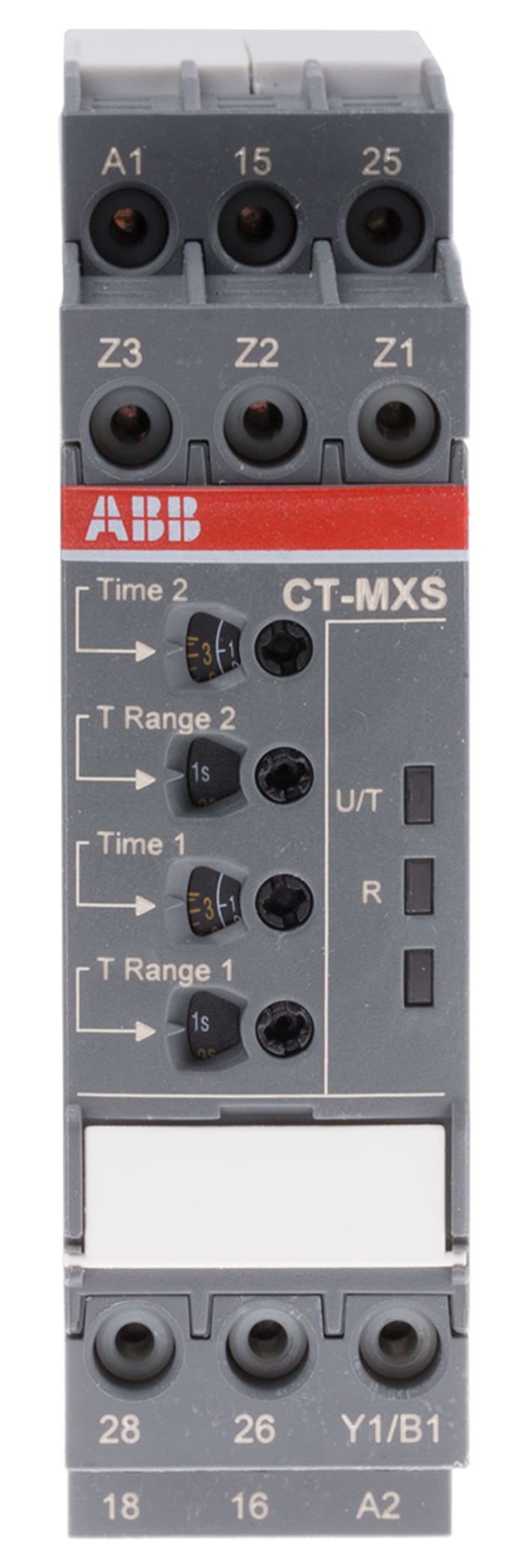

ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc

CT-MXS Series Multifunctional Timers The CT-MXS Series is a multifunctional electronic timer series from the CT-S range. It provides up to 5 timing functions and 2 times 10 time ranges. All electronic timers from the CT-S range are available with two different terminal versions. You can choose between the proven screw connection technology (double - chamber cage connection terminals) and the completely tool - free Easy Connect Technology (push - in terminals). This is denoted by either a "P"

Brand	ABB
Maximum Voltage	24 → 240 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Number of Timer Functions	Asymmetrical Recycler with Pulse Start
Time Interval	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi-Function
Contact Configuration	DPDT
Time Increment	Hour, Seconds
Maximum Current	4A
Maximum Voltage	strong>	300V ac
Switch Configuration	SPDT
Terminal Type	Push In
Power Supply	External
Width	22.5mm
Minimum Voltage	12V
Length	85.6mm
Minimum Current Value	10mA
Depth	strong>	113.4mm
Contact Material	Cadmium Free
Time Delay	(Recovery) <80ms
Origin	DE

1SVR740030R3300 CT-MXS.22P with product code You can purchase ABB branded ABB Zaman Rölesi, DPDT, Geçirmeli, 2 Kontaklı Çok İşlevli, SPDT, 24 → 240 V ac, 24 → 48 V dc product from our company.
