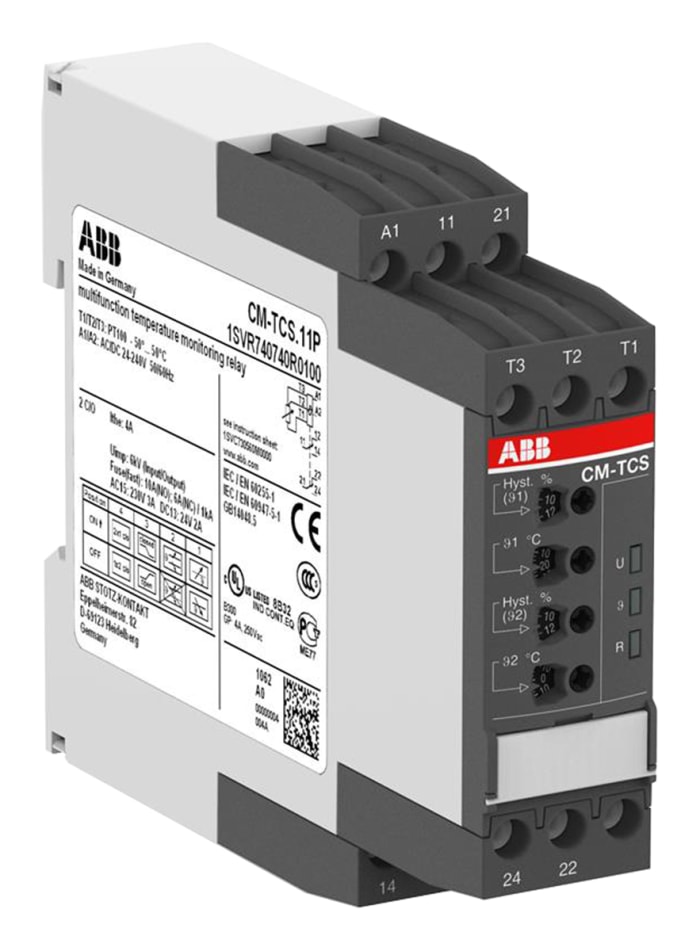

ABB Kontrol Rölesi, SPDT, Sıcaklık, 3 Fazlı, Besleme Gerilimi: 24 → 240 V ac/dc

CM-TCS Temperature Monitoring Relays The temperature monitoring relays CM-TCS monitor over-temperature, under-temperature, or temperatures between two threshold values with PT100 sensor. When the temperature falls below, or exceeds the maximum value, the output relays instantaneously change their positions according to the configured functionality. The front-face LED will display the current status.

Brand	ABB
Tracking Application	Temperature
Electric Phase	3
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	20ms
Frequency Sensing Range	13.5 → 440Hz
Temperature Sensing Range	- 50 → +50°C
Temperature Sensitivity	Overtemperature, Temperature Window Monitoring, Undertemperature
Series	CM-TCS
Maximum Frequency Sensed	440Hz
Length	103.7mm
Minimum Detected Frequency	13.5Hz
Operating Temperature Range	+60°C
Minimum Temperature Sensed	-50°C
Terminal Type	Push Insert
Height	85.6mm
Other Features	3 LEDs for the Indication of Operational States, All Configurations and Adjustments by Front- Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold Values, Precise Adjustment With Direct Reading Scales
Number of Poles	1
Minimum Operating Temperature	-40°C
Width	22.5mm
Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
Maximum Temperature Sensed	+50°C

1SVR740740R0100 CM-TCS.11P with product code You can purchase ABB branded ABB Kontrol Rölesi, SPDT, Sıcaklık, 3 Fazlı, Besleme Gerilimi: 24 → 240 V ac/dc product from our company.
