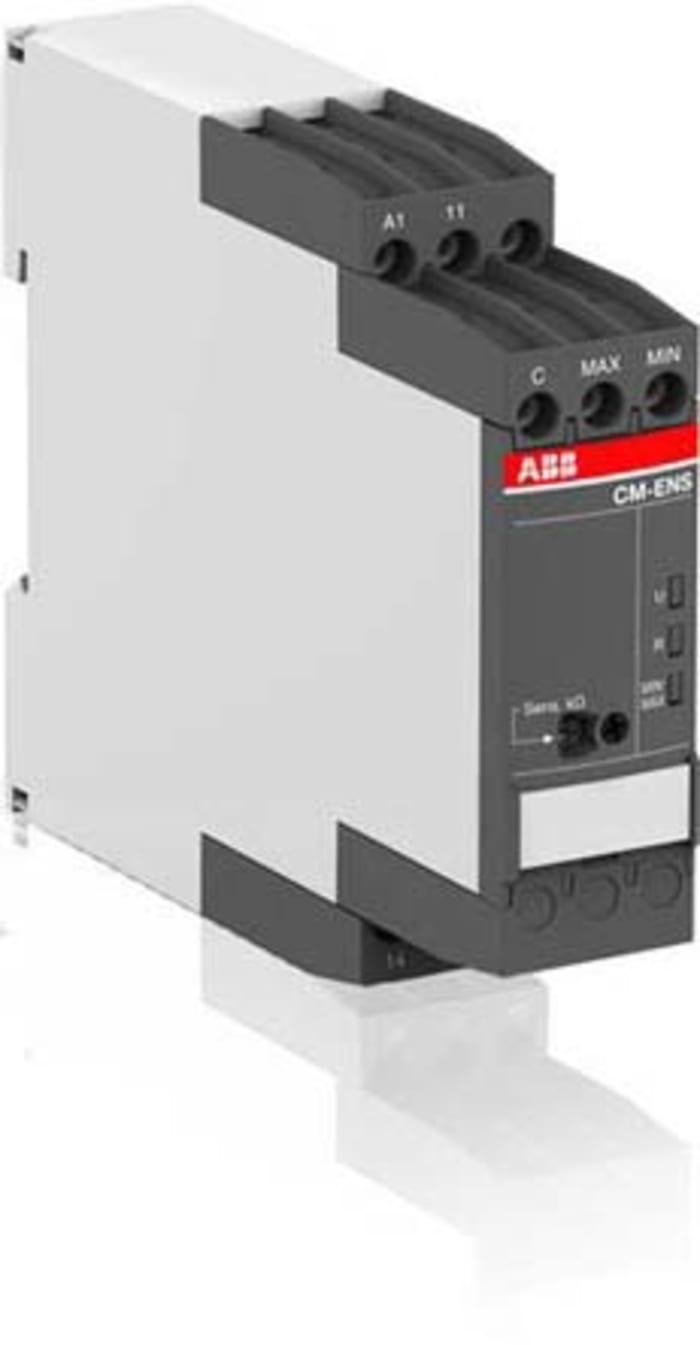

ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay

CM-ENS Liquid Level Relays A series of liquid level control relays from ABB for conductive liquids. The CM-ENS range gives a choice of 3 variants each with a compact, space saving housing with the highest fire protection and environmentally friendly materials. Installation is quick and easy using screw or easy-connect terminals and tool free DIN Rail mounting.

Brand	ABB
Number of Entries	1
Mounting Style	Din Rail
Supply Voltage	24 → 240 V ac/dc
Total Length	113.4mm
Total Width	22.5mm
Total Depth	113.4mm
Minimum Operating Temperature-25°C
Maximum Operating Temperature	+60°C
Serial	CM-ENS
Output Type	SPDT Relay
Current Value	11 mA
Number of Outputs	1
Insulation Voltage	300 (Supply Circuit)V
Sensitivity	5 → 100 kΩ
Input Type	Voltage
IP Value	IP20 (Terminal), IP50 (Enclosure)
Origin	DE

1SVR740850R0100 CM-ENS.11P with product code You can purchase ABB branded ABB CM-ENS Series Liquid Level Relay - DIN Rail, 24 → 240 V ac/dc 1 Voltage Input SPDT Relay product from our company.
