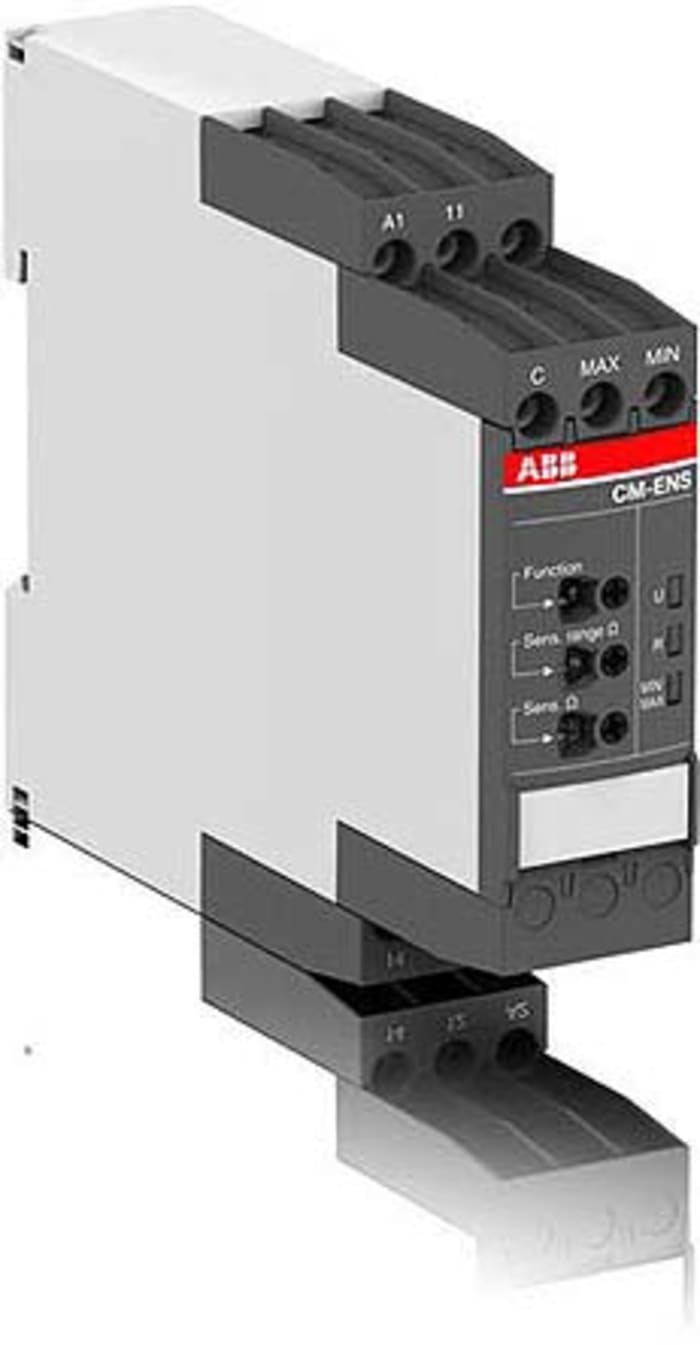

ABB CM-ENS Series Liquid Level Relay - DIN Rail, 110 → 130 V ac, 220 → 240 V ac 1 Voltage Input SPDT Relay

CM-ENS Liquid Level Relays A series of liquid level control relays from ABB for conductive liquids. The CM-ENS range gives a choice of 3 variants each with a compact, space saving housing with the highest fire protection and environmentally friendly materials. Installation is quick and easy using screw or easy-connect terminals and tool free DIN Rail mounting.

Brand	ABB
Number of Entries	1
Mounting Style	DIN Rail
Supply Voltage	110 → 130 V ac, 220 → 240 V ac
Total Length	113.4mm
Total Width	22.5mm
Total Depth	113.4mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Termination Type	Screw
IP Rating	Screw strong>	IP20 (Terminal), IP50 (Enclosure)
Output Type	SPDT Relay
Current Rating	20 (110 → 130 V ac) mA, 8.5 (220 → 240 V ac) mA
Number of Outputs	1
Isolation Voltage	300 (Supply Circuit)V
Sensitivity	0.1 → 1000 kΩ
Input Type	Voltage
Standards Met	CAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC /EN 61000-6-3, UL 508
Series	CM-ENS
Origin	DE

1SVR740850R2200 CM-ENS.23P with product code You can purchase ABB branded ABB CM-ENS Series Liquid Level Relay - DIN Rail, 110 → 130 V ac, 220 → 240 V ac 1 Voltage Input SPDT Relay product from our company.
