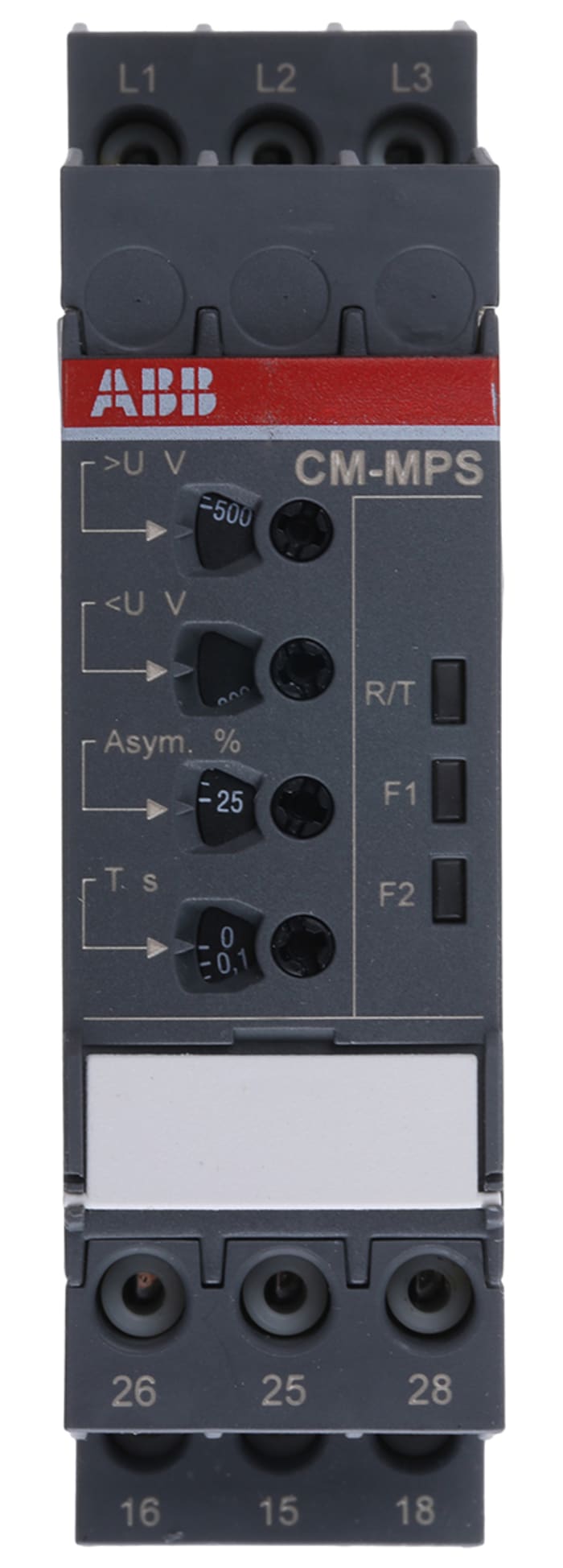

ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 → 500V ac, DIN Rail

CM-MPS x3 Multifunctional Three-Phase Monitoring Relays The CM-MPSx3 are multifunctional monitoring relays for three-phase mains. They monitor the phase parameters phase sequence, phase failure, over- and undervoltage and phase unbalance. CM-MPS.23 also monitors the neutral for interruption. The threshold values for over and undervoltage and phase unbalance are adjustable. CM-MPS.23 is also suitable for monitoring single-phase mains. For this, all three external conductors (L1, L2, L3) have to b

Brand	ABB
Tracking Application	Phase, Voltage
Electric Phase	3
Contact Configuration	DPDT
Voltage Detection Range	300 → 500V ac
Voltage Sensitivity	Over Voltage, Under Voltage
Mounting Type	DIN Rail
Phase SensitivityPhase Failure, Phase Imbalance, Phase Sequence
Time Delay	0.1 → 30 s, 0s
Frequency Detection Range	45 → 65Hz
Series	CM-MPS
Height	85.6mm
Length	103.7mm
Minimum Detected Voltage	300V ac
Operating Temperature Range	+60°C
Terminal Type	Push In
Minimum Operating Temperature	-25°C
Width	22.5mm
Maximum Operating Temperature	+60°C
Dimensions	103.7 x 22.5 x 85.6mm
Maximum Detected Voltage	500V ac
Origin	DE

1SVR740884R3300 CM-MPS.41P with product code You can purchase ABB branded ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 → 500V ac, DIN Rail product from our company.
