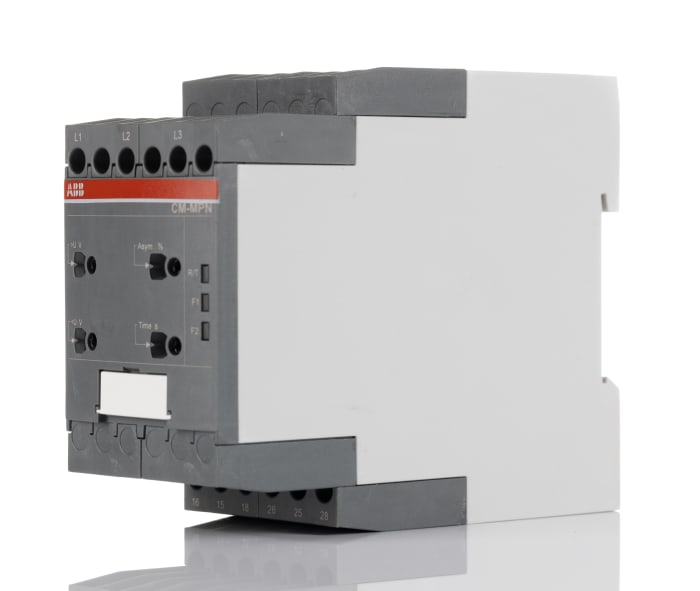

ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 450 → 720 V ac

CM-MPN Multifunctional Three-Phase Monitoring Relays The CM-MPN.x2 are multifunctional monitoring relays for three-phase mains. They monitor the phase,parameters phase sequence, phase failure, over and undervoltage and phase unbalance.The threshold,values for over- and undervoltage and phase unbalance are adjustable.

< /tbody>

Brand	ABB
Tracking Application	Phase, Voltage
Electric Phase	3
Contact Configuration	DPDT
Voltage Detection Range	450 → 720V ac
Voltage Sensitivity	Over Voltage, Under Voltage
Mounting Type	DIN Rail
Phase SensitivityPhase Failure, Phase Imbalance, Phase Sequence
Time Delay	0.1 → 30 s, 0s
Frequency Detection Range	45 → 65Hz
Series	CM-MPN
Height	85.6mm
Length	104.8mm
Minimum Detected Voltage	450V ac
Operating Temperature Range	-25 → +60°C
Terminal Type	Screw
Standards Met	strong>	UL
Minimum Operating Temperature	-25°C
Width	45mm
Maximum Operating Temperature	+60°C
Dimensions	104.8 x 45 x 85.6mm
Current Range	2 → 4A
Maximum Detected Voltage	strong>	720V ac
Origin	DE

1SVR750488R8300 CM-MPN.62S with product code You can purchase ABB branded ABB Kontrol Rölesi, DPDT, Faz, Gerilim, 3 Fazlı, Besleme Gerilimi: 450 → 720 V ac product from our company.
