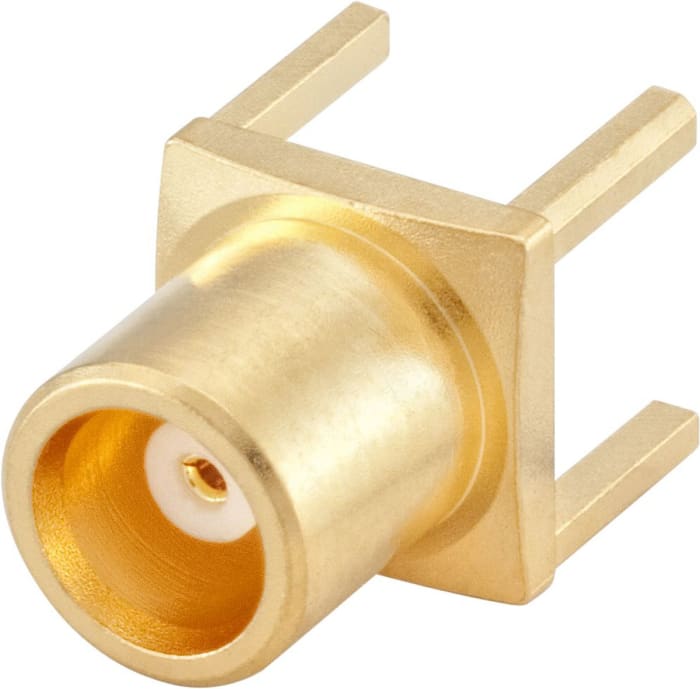

Rosenberger MCX Konnektörü, Jak, Perde Geçiş / Panele Uygun, Koaksiyel Kablo, 50Ω, PCBye / Karta Monte

Rosenberger MCX 50Ω PCB Mount Jacks From Rosenberger, a series of superior quality 50 Ω MCX PCB mount jacks. This range of MCX jacks have gold plated beryllium copper centre contacts and a PTFE dielectric. These micro- miniature connectors feature a secure snap together mechanism. Compact in design, 30% smaller than conventional SMB connectors making them ideal for space limited applications.

Brand	Rosenberger
Coaxial Connector Type	MCX Connector
Gender	Female
Mounting Type	PCB Mounting
Impedance	50Ω
Termination Method	Soldering
Housing Direction	Straight
Cable Type	Coaxial
Size	Standard
DivisionYes
Operating Frequency	DC to 6GHz
Contact Material	Brass
Contact Plating	Gold
Matching Type	Insertion
Serial Number	29
Origin	HU

29K101-400L5 with product code You can purchase Rosenberger branded Rosenberger MCX Konnektörü, Jak, Perde Geçiş / Panele Uygun, Koaksiyel Kablo, 50Ω, PCBye / Karta Monte product from our company.
