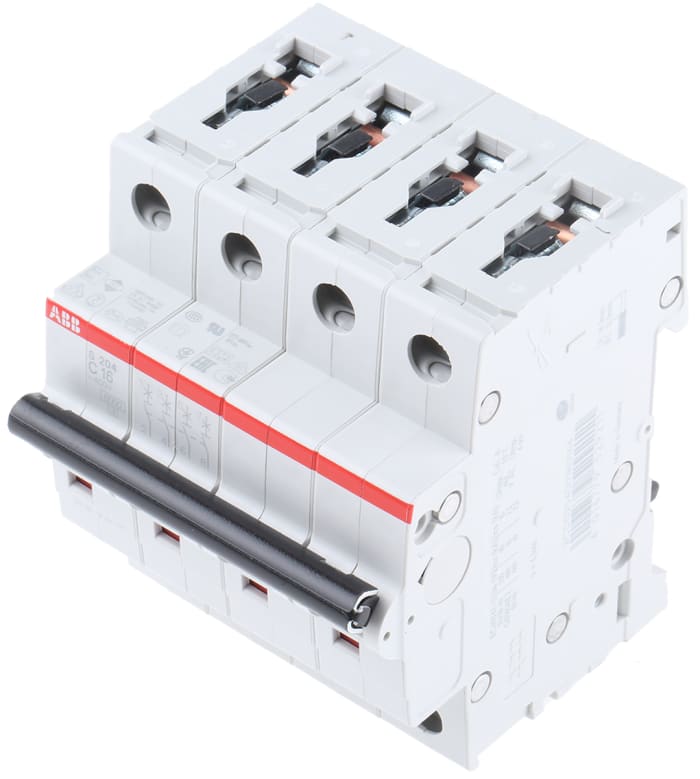

System M Pro S200 MCB Mini Şalter 4P, 16 A, C Tipi

Type C 4 Pole 6kA - System Pro M Compact The ABB S200 Series of MCB offer a compact solution for protection requirements. These miniature circuit breakers are current limiting; DIN rail mounted and can offer a good equivalent to fused systems.

Type C characteristic offers short circuit response of 5-10 x normal rated current, making it ideal for circuits with higher inrush currents such as motor control and fluorescent lighting installations in industrial buildings where nuisance trippi

Brand	ABB
Number of Poles	4
Current Value	16A
Cutting Specifications	Type C
Nominal AC Voltage	400V
Nominal DC Voltage	110V
Series	S200
Model Number	S204-C16
Range	System M Pro
Cutting Capacity (At Maximum Voltage Value)	6 kA
Circuit Breaker Type	MCB
Mounting Style	DIN Rail Mounted
Width	70mm
Length	88mm
Depth	69mm
Cutting Mechanism	Heat
Application	Commercial, Residential
Terminal Contact Type	Screw
Origin	DE

2CDS254001R0164 S204-C16 with product code You can purchase ABB branded System M Pro S200 MCB Mini Şalter 4P, 16 A, C Tipi product from our company.
