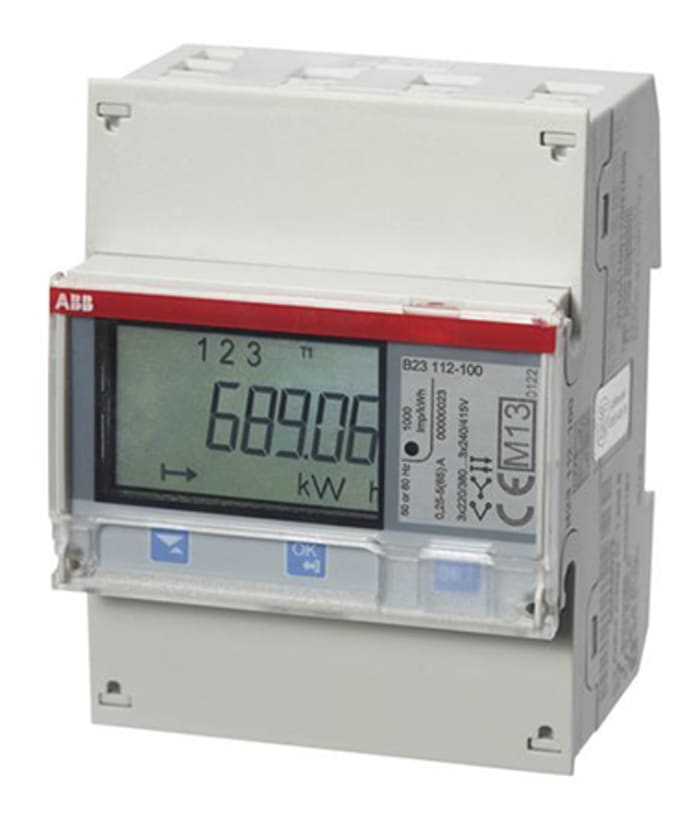

ABB 3 Phase LCD Energy Meter, Type Electromechanical

ABB Energy Meter B23 Three-Phase Steel-Level The B series is a basic meter product range for installations up to 65 A direct connected or transformer connected (CT).
These series meters are high runner meters for many applications and installations. Navigating the meter is easily done via the push-buttons below the display.
Data from the B series meters can be collected via pulse output or serial communication.
All meters come with an infrared port for communication with an external

Brand	ABB
Screen Type	LCD
Number of Digits	7
Number of Phases	3
Pulse Output	Yes
Number of Entries	1
Depth	65mm
Meter Accuracy	Class 1
Minimum Temperature	-40°C
Maximum Temperature	strong>	+70°C
Meter Type	Electromechanical
Measurement Range	220 → 240V ac
Series	B
Approvals	EN 50470-1, EN 50470-3, EN 55022, GB 4208-2008, GB/T 17215.211-2006, GB/T 17215.321-2008 Class 1 and 2, GB/T 17215.322-2008 Class 0 and 5 S, IEC 60060-1, IEC 60529, IEC 60695-2-1, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62052-11, IEC 6

2CMA100164R1000 B23 112-100 with product code You can purchase ABB branded ABB 3 Phase LCD Energy Meter, Type Electromechanical product from our company.
