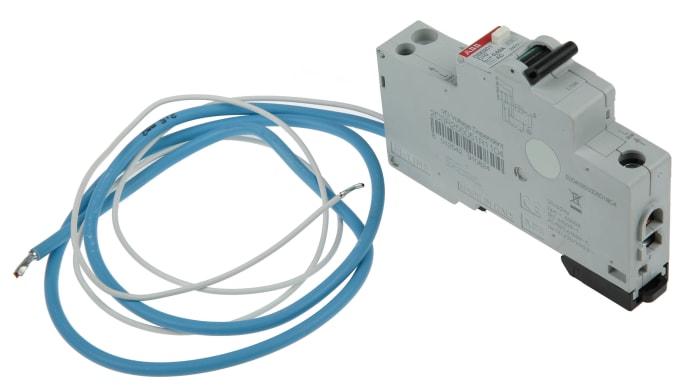

ABB System M Pro DSE201 Aşırı Akım Korumalı Kaçak Akım Sigortası (RCBO), Hassasiyet: 30mA, 10 A, 1P+N

DSE201 Series Type C RCBO's ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

Brand	ABB
Current Rating	10A
Number of Poles	1P + N
Cutting Sensitivity	30mA
Cutting Features	Type C
Range	System M Pro
Circuit Breaker Type	RCBO
Series	DSE201
Nominal AC Voltage	240V
Mounting Style	DIN Rail Mounted
Earth Leakage Protection Type	AC
Cutting Mechanism	Thermal-Magnetic
Total Dimensions< /strong>	17.5 x 100 x 68.9mm
Reset Actuator Type	Toggle Switch
Total Width	100mm
Total Depth< /strong>	68.9mm
Terminal Contact Type	Screw
Total Length	17.5mm
Cutting Capacity (At Maximum Tension Value)	6 kA
Origin	IT

2CSR255051R1104 DSE201 C10 AC30 - N Blue with product code You can purchase ABB branded ABB System M Pro DSE201 Aşırı Akım Korumalı Kaçak Akım Sigortası (RCBO), Hassasiyet: 30mA, 10 A, 1P+N product from our company.
