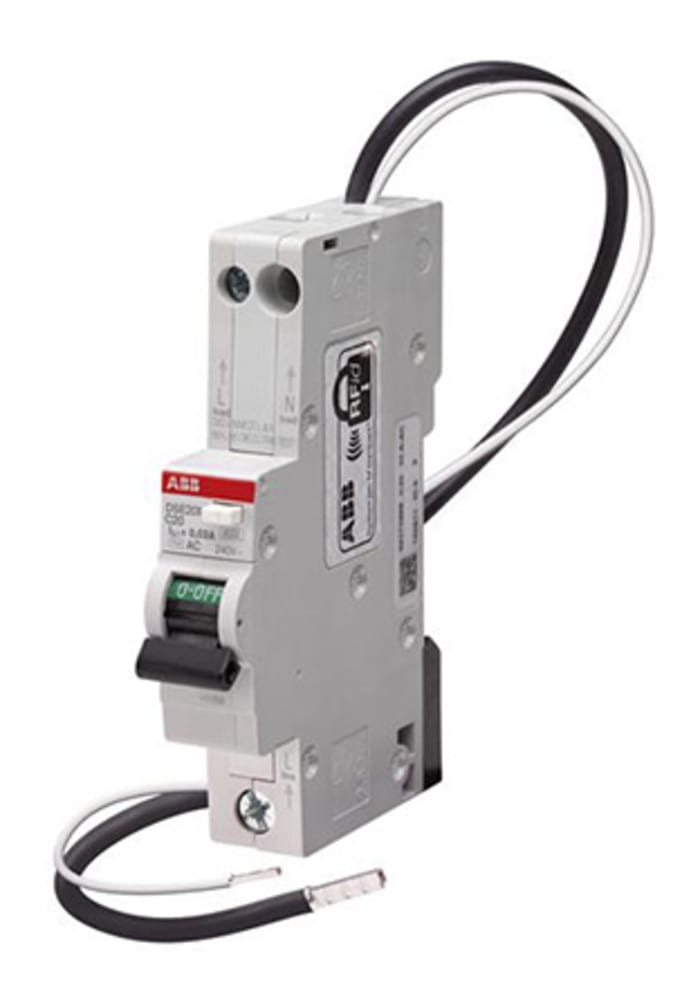

ABB System M Pro DSE201 Aşırı Akım Korumalı Kaçak Akım Sigortası (RCBO), Hassasiyet: 30mA, 32 A, 1P+N

DSE201 Series Type B RCBO's ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

< /tbody>

Brand	ABB
Current Rating	32A
Number of Poles	1P + N
Cutting Sensitivity	30mA
Cutting Features	Type B
Range	System M Pro
Circuit Breaker Type	RCBO
Series	DSE201
Nominal AC Voltage	240V
Mounting Style	DIN Rail Mounted
Overall Dimensions	17.5 x 100 x 68.9mm
Reset Actuator Type	Toggle Switch
Standards Met	CE
Total Width	100mm
Total Depth	68.9mm
Terminal Contact Type	Screw
Total Length	17.5mm
Breaking Capacity (At Maximum Voltage Value)	6 kA
Breaking Mechanism	Thermal-Magnetic
Origin	IT

2CSR255051R1325 DSE201 B32 AC30 - N Blue with product code You can purchase ABB branded ABB System M Pro DSE201 Aşırı Akım Korumalı Kaçak Akım Sigortası (RCBO), Hassasiyet: 30mA, 32 A, 1P+N product from our company.
