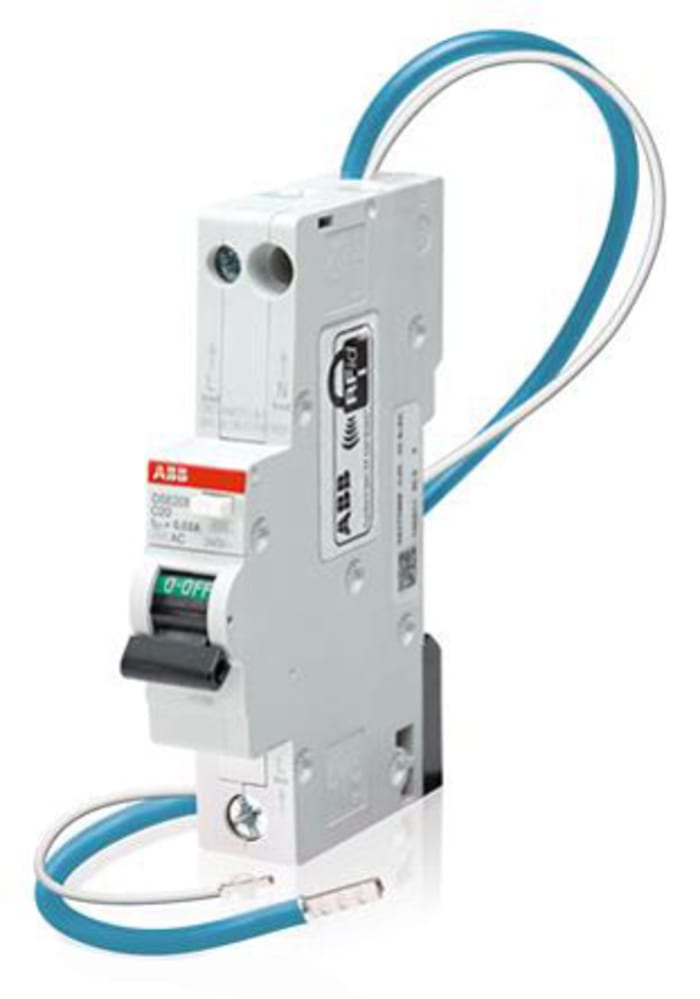

ABB RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range

DSE201 Series Type AC RCBO's ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.

Brand	ABB
Current Rating	10A
Number of Poles	1P + N
Cutting Sensitivity	30mA
Cutting Features	Type C
Range	System M Pro
Circuit Breaker Type	RCBO
Series	DSE201 M
Nominal AC Voltage	230 → 240V
Mounting Style	DIN Rail Mounted
Earth Leakage Protection Type	AC
Total Width	115mm
Total Depth	68.9mm
Breaking Capacity (At Maximum Voltage Value)	10 kA
Cutting Mechanism	Thermal-Magnetic
Overall Dimensions	17.6 x 115 x 68.9mm
Reset Actuator Type	Toggle Switch
Total Length	17.6mm

2CSR275051R1104 DSE201 M C10 AC30 - N Blue with product code You can purchase ABB branded ABB RCBO, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range product from our company.
