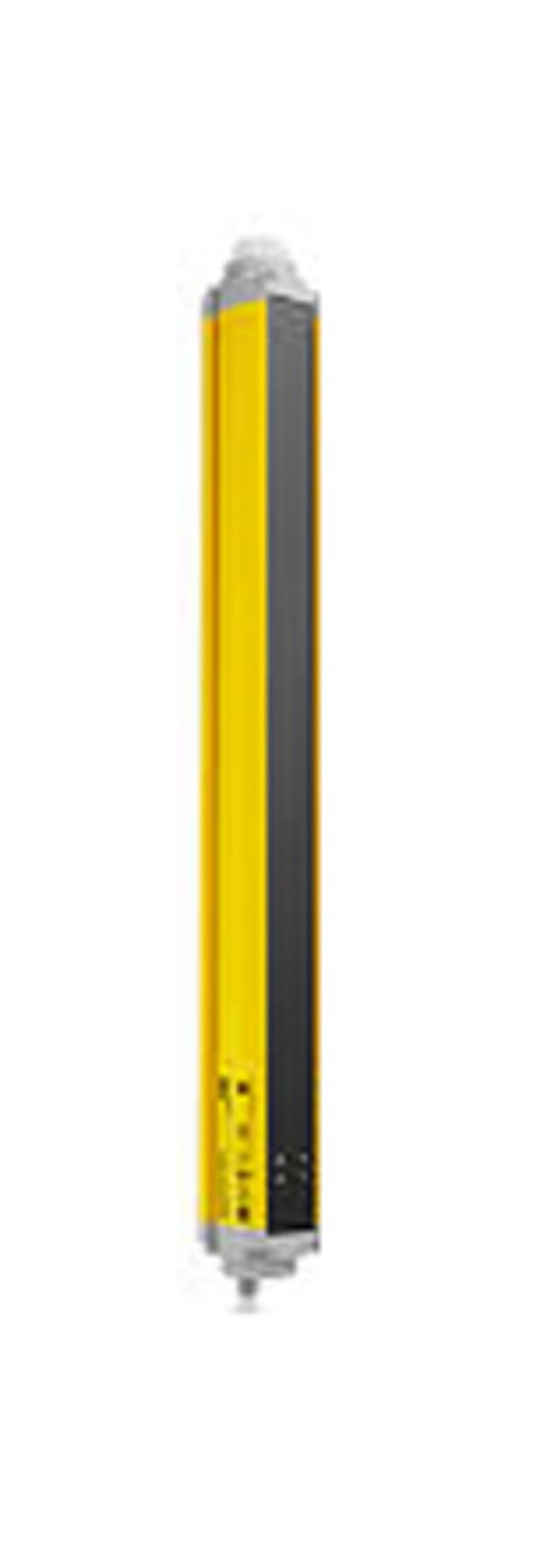

ABB Orion3 Light Curtain Active Part, 4 Beam(s)

ABB Orion3 Light Grids The Orion3 light grids from ABB combine both the transmitter and receiver in a single unit, called the active unit. The beams are then reflected using a mirror called the passive unit, which reduces cabling because it is not connected. The Orion3 is available in two options, a base model and an extended model.

Brand	ABB
Range	Orion3
Component Type	Receiver, Sender
Safety Type	4
SIL IEC 61508	3
PL EN ISO 13849-1	e
Number of Rays	4
Shield Height	1200mm
Minimum Scanning Distance	0.5m
Maximum Scanning Distance	8m
Maximum Response Time	12 ms
Length	1.306m
Height
strong>	56.9mm
Width	52mm
Terminal Type	8 Pin M12 Connector
Dimensions	1306.35 x 52 x 56.9 mm
Features	4 Beams, Active and Passive Unit, Body Detection, Local Reset and EDM, Rugged Profile, Type 4, Working Distance up to 8 m
Application	Body
Origin	IT

2TLA022306R0300 Orion3-4-K2C-120-B with product code You can purchase ABB branded ABB Orion3 Light Curtain Active Part, 4 Beam(s) product from our company.
