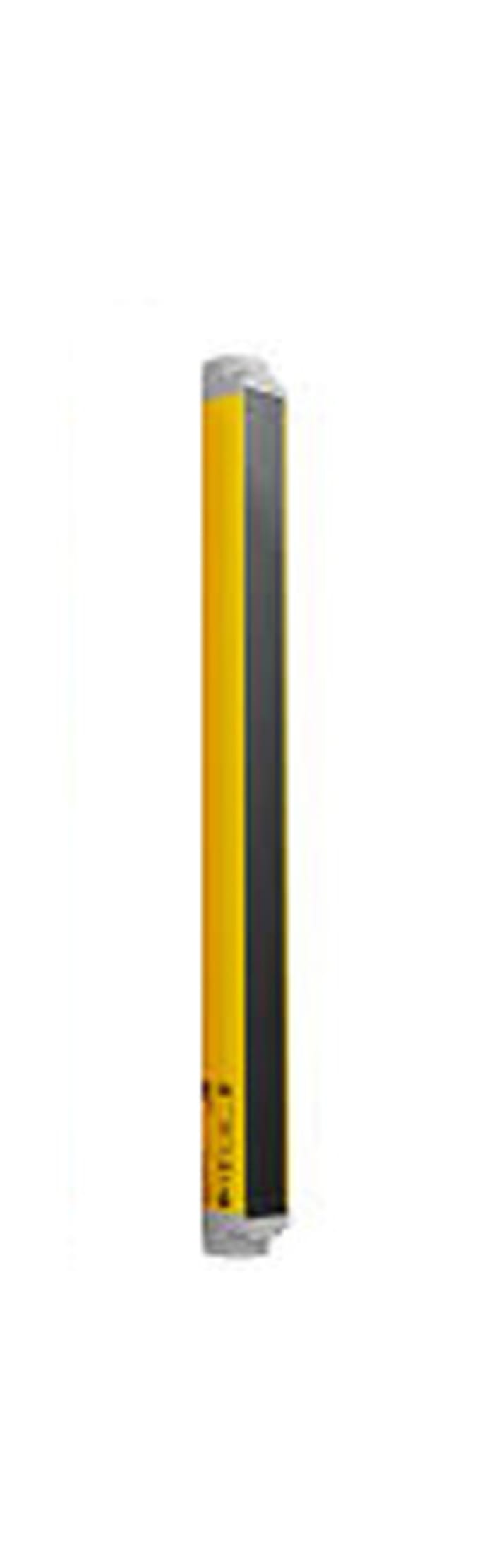

Işık Bariyeri, Ayna, 2 Işınlı, Maks. Tarama: 8m, Orion3

ABB Orion3 Light Grids The Orion3 light grids from ABB combine both the transmitter and receiver in a single unit, called the active unit. The beams are then reflected using a mirror called the passive unit, which reduces cabling because it is not connected. The Orion3 is available in two options, a base model and an extended model.

Brand	ABB
Range	Orion3
Component Type	Mirror
Safety Type	4
SIL IEC 61508	3
SIL (IEC 61508)	3
PL EN ISO 13849-1	e
PL (EN ISO 13849-1)	e
Number of Rays	2
Protector Height	500mm
Minimum Scanning Distance	0.5m
Maximum Scanning Distance	8m
< strong>Length	580.5mm
Height	56.9mm
Features	2 Beams, Active and Passive Unit, Body Detection, Local Reset and EDM, Rugged Profile, Type 4, 8 Working Distance up to m
Dimensions	580.5 x 52 x 56.9 mm
Width	52mm
Terminal Type8 Pin M12 Connector
Application	Housing
Origin	IT

2TLA022306R1000 Orion3-4-M1C-050 with product code You can purchase ABB branded Işık Bariyeri, Ayna, 2 Işınlı, Maks. Tarama: 8m, Orion3 product from our company.
