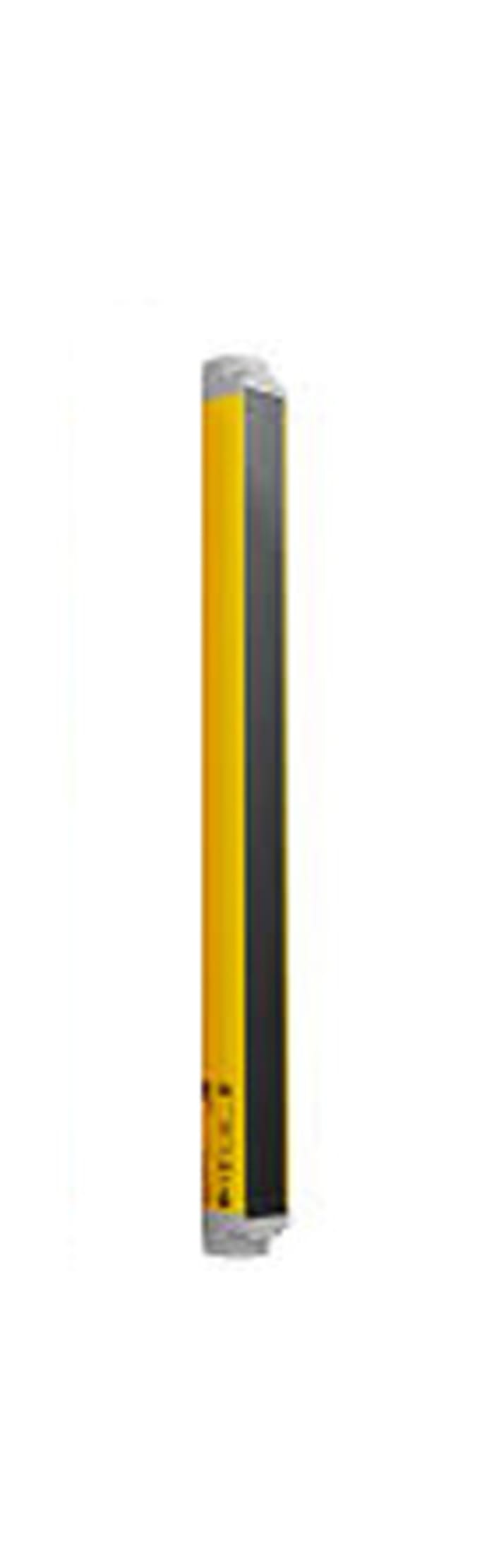

ABB Orion3 Light Curtain Passive Part, 4 Beam(s)

ABB Orion3 Light Grids The Orion3 light grids from ABB combine both the transmitter and receiver in a single unit, called the active unit. The beams are then reflected using a mirror called the passive unit, which reduces cabling because it is not connected. The Orion3 is available in two options, a base model and an extended model.

Brand	ABB
Range	Orion3
Component Type	Mirror
Safety Type	4
SIL IEC 61508	3
PL EN ISO 13849-1	e
Number of Rays	4
Shield Height	1200mm
Minimum Scanning Distance	0.5m
Maximum Scanning Distance	8m
Length	1.281m
Height	56.9mm
Features4 Beams, Active and Passive Unit, Body Detection, Local Reset and EDM, Rugged Profile, Type 4, Working Distance up to 8 m
< strong>Dimensions	1280.5 x 52 x 56.9 mm
Width	52mm
Terminal Type	8 Pin M12 Connector
Application	Body
Origin	IT

2TLA022306R1400 Orion3-4-M2C-120 with product code You can purchase ABB branded ABB Orion3 Light Curtain Passive Part, 4 Beam(s) product from our company.
