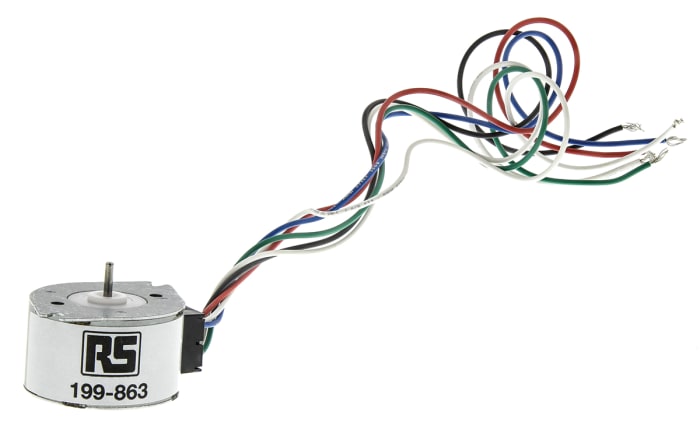

Crouzet Kalıcı Mıknatıslı Step Motoru, Unipolar, 190 mA, 15mNm, 6 Kablolu, 15°, 13,3 V dc

7.5° and 15° Stepper Motors Permanent magnet four-phase hybrid stepper motors with 7.5 or 15° step angles. The motors have 6-lead connections and are consequently suitable for use with either unipolar or bipolar drives.

Brand	Crouzet
Stepper Motor Type
strong>	Permanent Magnet
Step Angle	15Degree
Holding Torque	15mNm
Number of Cables	6
Supply Voltage	13.3 V
Shaft Diameter	2mm
Current Value	190 mA
Winding Arrangement	Single Pole
Shaft Length	8.8mm
Depth	21.7mm
Number of Pole Pairs	2
Resistance per Step	115Ω
Origin	FR

82950004 with product code You can purchase Crouzet branded Crouzet Kalıcı Mıknatıslı Step Motoru, Unipolar, 190 mA, 15mNm, 6 Kablolu, 15°, 13,3 V dc product from our company.
