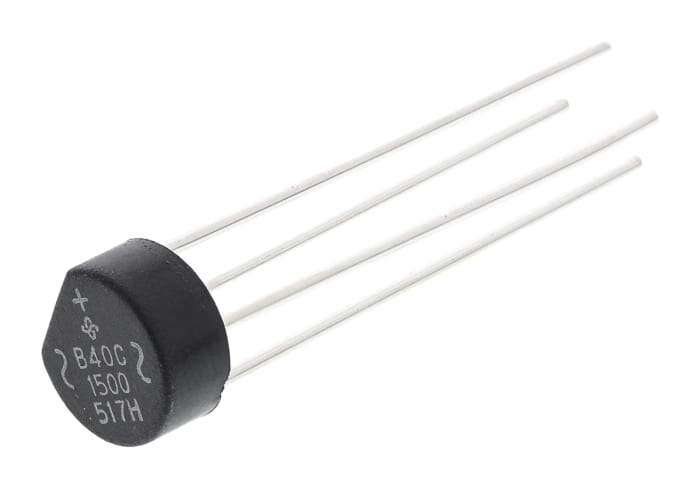

B40C1500G-E4/51 Vishay Vishay Bridge Rectifier, 1.6A, 65V, 4-Pin

Brand: Vishay Product code:B40C1500G-E4/51

Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.

Company Name

Authorized person

Telephone

E-mail address

Offer Note

I have read, understood and accepted KVKK and Privacy Text.

Explanation

Bridge Rectifiers with Wire Leads, B...C1500G Series, Vishay Semiconductor

Brand	Vishay
Peak Average Forward Current< /strong>	1.6A
Bridge Type	Single Phase
Peak Reverse Recurrent Voltage	65V
Mounting Type	Through Hole
Package Type	WOG
Number of Pins	4
Configuration	Single
Peak Non-Repeating Forward Inrush	50A
< strong>Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Peak Forward Voltage	1V
Peak Reverse Current	10µA
Length	9.86mm
Dimensions	9.86 x 8.84 x 5.6mm
< strong>Height	5.6mm
Width	8.84mm

B40C1500G-E4/51 with product code You can purchase Vishay branded Vishay Bridge Rectifier, 1.6A, 65V, 4-Pin product from our company.
