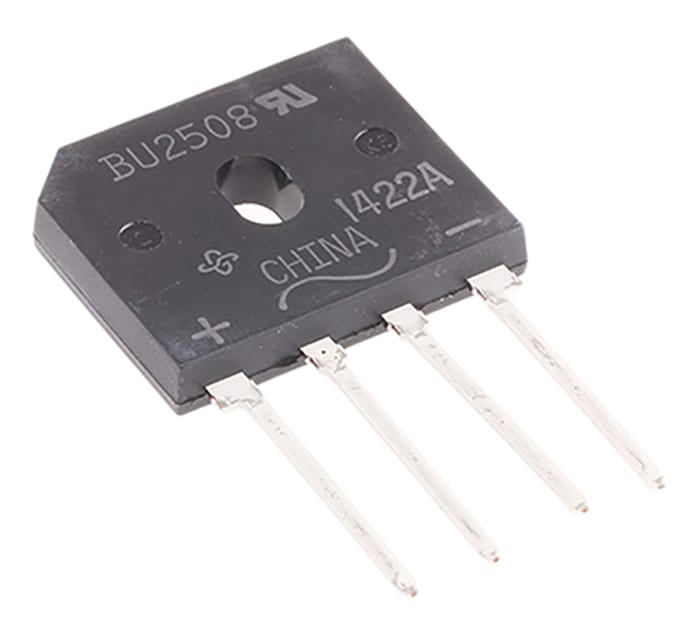

Vishay Bridge Rectifier, 25A, 800V, 4-Pin

SIL PCB Mounting, BU Series, Vishay Semiconductor BU series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. These general purpose AC/DC full wave bridge-rectifiers are suitable for linear and switching power supplies in home electrical appliance and white-goods applications. The rectifiers feature an enhanced isoCink+™ high-current density single in-line package with superior thermal conductivity.

Brand	Vishay
Peak Average Forward Current< /strong>	25A
Bridge Type	Single Phase
Peak Reverse Recurrent Voltage	800V
Mounting Type	Through Hole
Package Type	THIS
Number of Pins	4
Configuration	Single
Peak Non-repetitive Forward Inrush	300A
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	-55°C
Peak Forward Voltage	1.05V
Peak Reverse Current	350µA
Length	22.3mm
Dimensions	22.3 x 4.1 x 18.8mm
< strong>Height	18.8mm
Width	4.1mm
Origin	CN

BU2508-E3/45 with product code You can purchase Vishay branded Vishay Bridge Rectifier, 25A, 800V, 4-Pin product from our company.
