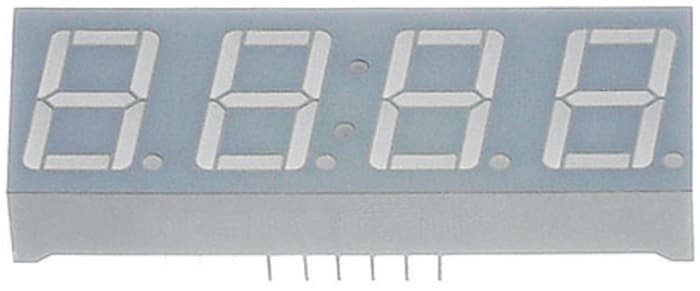

CA56-12SYKWA Kingbright 4 Digit 7-Segment LED Display, CA Yellow 120 mcd RH DP 14.2mm

Kingbright Quad Digit 7-segment Display A range of quad-digit 7-segment LED displays from Kingbright. In addition to the four digits plus decimal points, most of these displays feature a colon between the two central digits allowing them to correctly display time in 12 or 24-hour format. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	4
LED Colors	Yellow
Number of Segments	7
Dominant Wavelength	590 nm
Character Width	8mm
Character Height	14.2mm
Common Connection	Anode
Mounting Type< /strong>	Through Hole
External Depth	19mm
External Dimensions	50.3 x 19 x 8.1mm
External Height
strong>	8.1mm
External Width	50.3mm
Luminous Intensity	120 mcd
Face ColorGrey
Forward Voltage	2 V
Power Loss	75mW
Series	CA56
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+ 85°C
Decimal Direction	Right Side
< strong>Minimum Operating Temperature	-40°C
Origin	CN

CA56-12SYKWA with product code You can purchase Kingbright branded CA56-12SYKWA Kingbright 4 Digit 7-Segment LED Display, CA Yellow 120 mcd RH DP 14.2mm product from our company.
