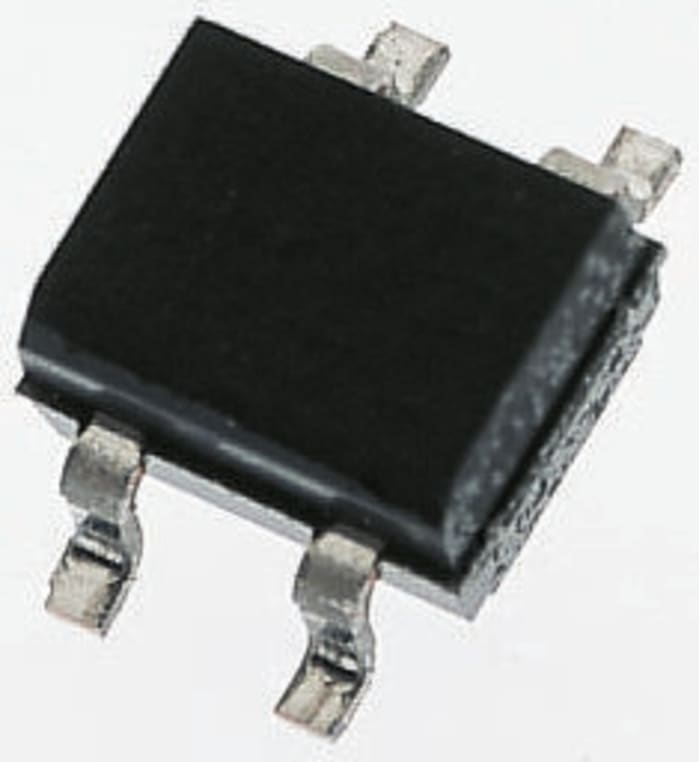

| Brand | Vishay |
| Bridge Type | Single Phase |
| Peak Average Forward Current | 1A |
| Peak Reverse Recurrent Voltage | 800V |
| Mounting Type | Surface Mount |
| Package Type | DF-S |
| Number of Pins | 4 |
| Diode Technology | Silicone Connection |
| Configuration | Single |
| Peak Non-repetitive Forward Inrush | 50A |
| Maximum Operating Temperature | + 150°C |
| Minimum Operating Temperature | -55°C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 8.51mm |
| Dimensions | 8.51 x 6.5 x 3.3mm |
| Height | 3.3mm |
| Width | 6.5mm |
| Origin< /strong> | CN |
