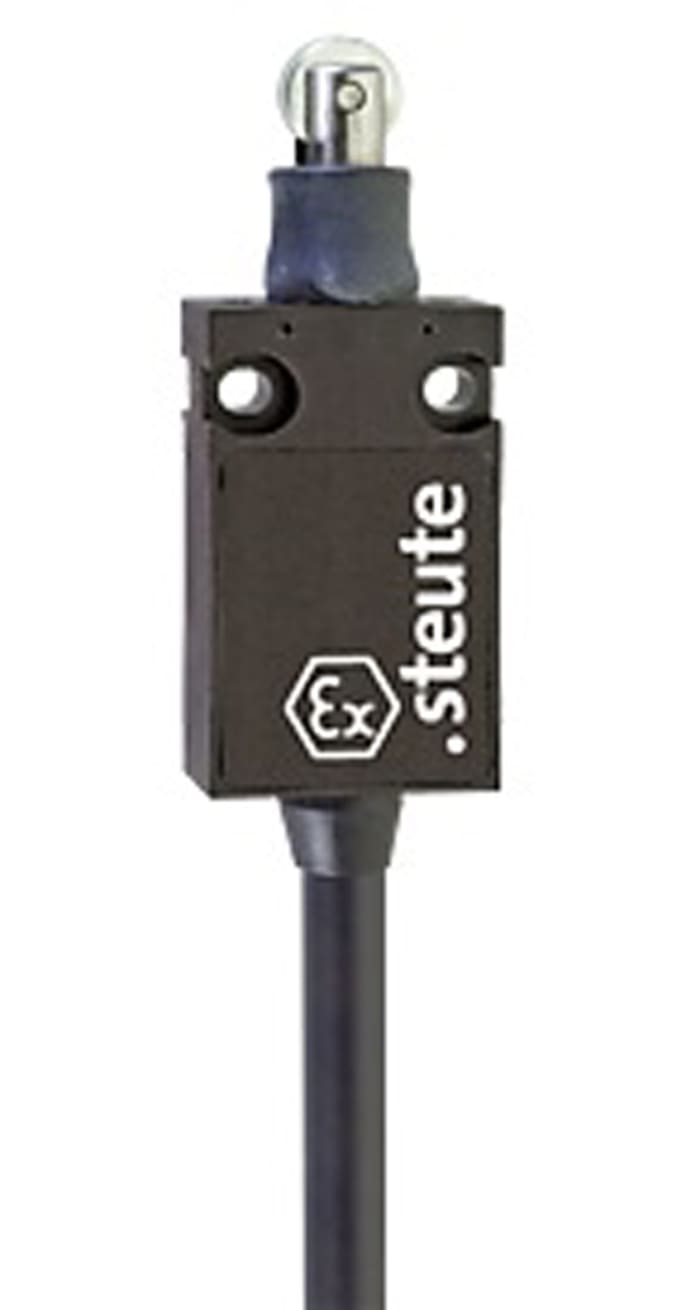

Limit Siviç (Sınır Şalteri), Roller Plunger with Collar, Pozitif Kapalı, Yavaş Tepkili, Cam Elyaf, Termoplastik, IP65

EX 14 Limit Switches Steute Ex 14 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security.
The Ex 14 limit switches feature slow action positive break NC contacts and are available with various contact configurations.

Brand	Steute
Actuator Type	Roller Piston
Pole and Pulse Configuration	DPST
Normal State Configuration	NO/NC
IP Value	IP65
Maximum Current	250 V ac 6 A, 230 V dc 250mA
Enclosure Material	Glass Fiber Reinforced Thermoplastic
Maximum AC Voltage	250V
Maximum DC Voltage	230V
Connection Type	Cable
Serial	Ex 14
Transaction Type	Positive Break, Slow Action
Length	762mm
Hazardous Area Certificate	IECEx
Depth	406.4mm
Width	1958.34mm
Maximum Operating Temperature	+75 °C
Minimum Operating Temperature	-20°C
Mounting Direction	Vertical
Mechanical Life	>1000000Operations
Origin	DE

Ex 14 WR 1O/1S-5m with product code You can purchase Steute branded Limit Siviç (Sınır Şalteri), Roller Plunger with Collar, Pozitif Kapalı, Yavaş Tepkili, Cam Elyaf, Termoplastik, IP65 product from our company.
