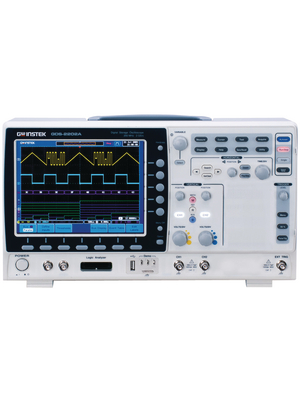

Oscilloscope GDS-2000A DSO 2x 300MHz 2GSPS USB / RS232 / GPIB / LAN

Oscilloscope, Type=GDS-2302A, Analogue Channels=2, Bandwidth=300 MHz, Digital Channels (MSO)=-999, Input Impedance=1 MΩ, Rise Time=1.17 ns, Sampling Rate=2 GSPS, Time Basis Max.=100 s/div, Time Basis Min.=1 ns/div, Vertical Resolution=8 bit, Vertical Sensitivity / Div Max.=10 V/div, Vertical Sensitivity / Div Min.=1 mV/div, Display Type=LCD-TFT, Interface Type=USB RS232 GPIB LAN, Measuring Functions=Amplitude Peak to Peak Maximum Minimum High Low Mean Cycle Mean RMS Cycle RMS Area Cycle Area ROVShoot FOVShoot RPREShoot FPREShoot Frequency Period Rise Time Fall Time +Width -Width Duty Cycle +Pulses -Pulses +Edges Edges FRR FRF FFR FFF LRR LRF LFR LFF Phase Cursor measurements, Power Supply=100 ... 240 VAC, Trigger=Edge Pulse Width (Glitch) Video Pulse Runt Rise & Fall Alternate Glitch Trigger Duration Trigger Slope Trigger Time Out Event-Delay Time-Delay Logic Bus, Warranty=3 Years, Safety Category=CAT II 300 V, Series=GDS-2000A, Type of Oscilloscope=DSO

GDS-2302A with product code You can purchase GW Instek branded Oscilloscope GDS-2000A DSO 2x 300MHz 2GSPS USB / RS232 / GPIB / LAN product from our company.
