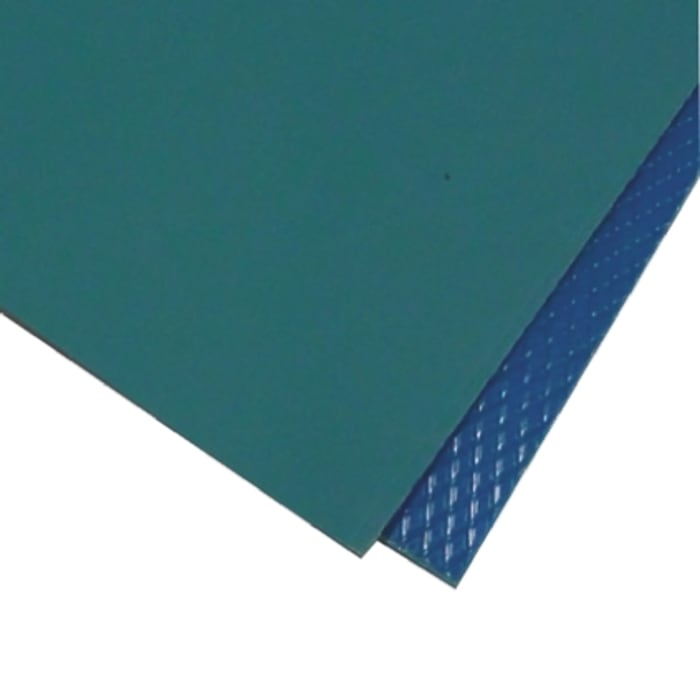

Bergquist Self-Adhesive Thermal Interface Sheet, 0.02in Thick, 0.9W/m·K, Polymer, 200 x 100mm

Gap Pad® 1000SF Gap Pad® 1000SF is a thermally conductive, electrically insulating, silicone-free polymer specially designed for silicone-sensitive applications. The material is ideal for applications with high standoff and flatness tolerances. Gap Pad® 1000SF is reinforced for easy material handling and added durability during assembly. The material is available with a protective liner on both sides of the material. The topside has reduced tack for ease of handling. Typical applicat

Brand	Bergquist
Dimensions	200 x 100mm
Thickness	0.02inch
Length	200mm
Width	100mm
Thermal Conductivity	0.9W/m·K
Material	Polymer
Self-Adhesive	Yes
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+125°C
Hardness	Shore OO 40
Operating Temperature Range	-60 → +125°C
Origin	US

GP1000SF-0.020-02-00-200x100 with product code You can purchase Bergquist branded Bergquist Self-Adhesive Thermal Interface Sheet, 0.02in Thick, 0.9W/m·K, Polymer, 200 x 100mm product from our company.
