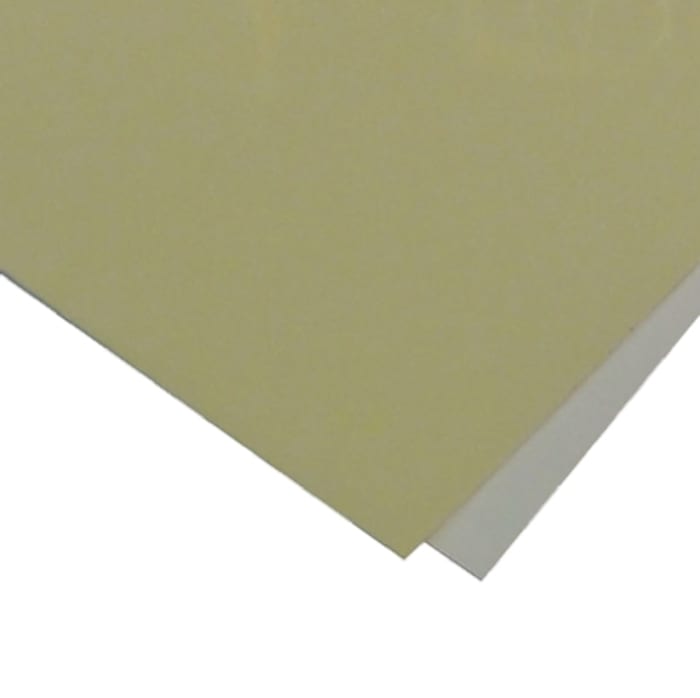

Bergquist Self-Adhesive Thermal Interface Sheet, 0.16in Thick, 2.4W/m·K, Gap Pad 2500S20, 200 x 100mm

Bergquist Gap Pad® 2500S20 Bergquist Gap Pad® 2500S20 is a thermally conductive, reinforced material rated at a thermal conductivity of 2.4 W/m-K. The material is a filled-polymer material yielding extremely soft, elastic characteristics. The material is reinforced to provide easy handling and converting, added electrical isolation and tear resistance. Berqquist Gap Pad® 2500S20 is well suited for low-pressure applications that typically use fixed standoff or clip mounting. The mater

Brand	Bergquist
Dimensions	200 x 100mm
Thickness	0.16inch
Length	200mm
Width	100mm
Thermal Conductivity	2.4W/m·K
Material	Gap Pad 2500S20
Self-Adhesive	Yes
Minimum Operating Temperature	-60°C
< strong>Maximum Operating Temperature	+200°C
Hardness	Shore OO 20
Material Trade Name	Gap Pad 2500S20
Operating Temperature Range	-60 → +200°C
Origin	US

GP2500S20-0.160-02-00-200x100 with product code You can purchase Bergquist branded Bergquist Self-Adhesive Thermal Interface Sheet, 0.16in Thick, 2.4W/m·K, Gap Pad 2500S20, 200 x 100mm product from our company.
