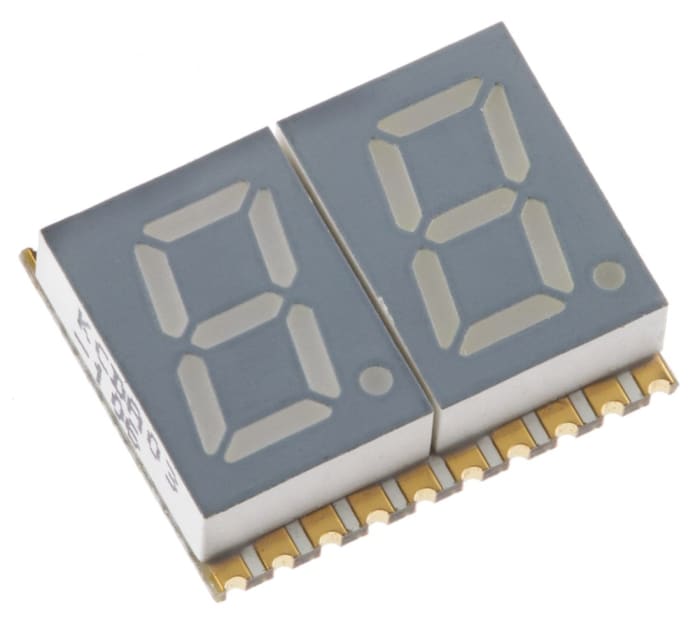

Kingbright KCDA03-106 2 Dijit 7 Segment LED Display (Gösterge), CA, Turuncu 46,000 μcd, RH DP 7,62mm

Kingbright Dual Digit, 5.08 & 7.62mm A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	2
LED Colors	Orange
Number of Segments	7
Dominant Wavelength	601 nm
Character Width	4.2mm
Character Height	7.6mm
Common Connection	Anode
Mounting Type	Surface Mount
External Height	12mm
External Width	14.8mm
External Depth	3.8mm
External Dimensions	12 x 14.8 x 3.75mm
Luminous Intensity	46 mcd
Face Color	Gray
Power Loss	75mW
Forward Voltage	2.1 V
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Decimal Direction	Right Side
Origin	CN

KCDA03-106 with product code You can purchase Kingbright branded Kingbright KCDA03-106 2 Dijit 7 Segment LED Display (Gösterge), CA, Turuncu 46,000 μcd, RH DP 7,62mm product from our company.
