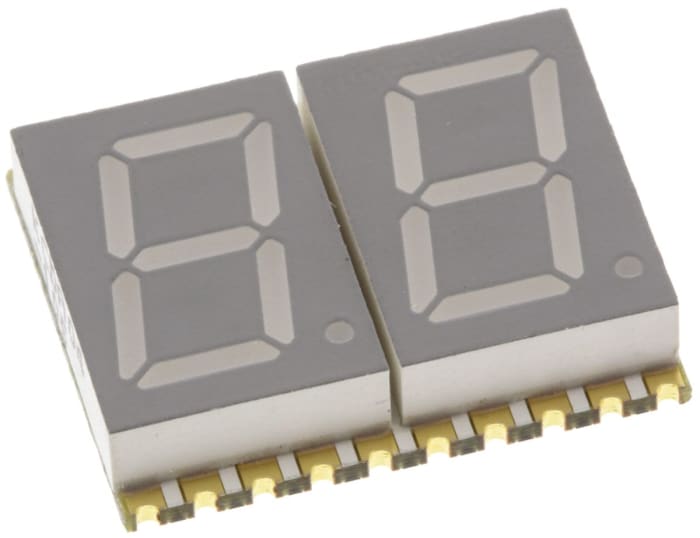

Kingbright KCDA04-105 2 Dijit 7 Segment LED Display (Gösterge), CA, Kırmızı 27 mcd, RH DP 10,2mm

Kingbright Dual Digit, 10.0 to 20.3mm A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	2
LED Colors	Red
LED Color(s)	Red
Number of Segments	7
Dominant Wavelength	630 nm
Character Width	5.6 mm
Character Height	10.2mm
Common Connection	Anode
Mounting Type	Surface Mount
External Depth	3.8mm
External Dimensions	15 x 18.5 x 3.75mm
External Height	15mm
External Width	18.5mm
Luminous Intensity	27 mcd
Face Color	Gray
Forward Voltage	2 V
Power Loss	75mW
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Decimal Direction	Right Side
Minimum Operating Temperature	-40°C
Origin	CN

KCDA04-105 with product code You can purchase Kingbright branded Kingbright KCDA04-105 2 Dijit 7 Segment LED Display (Gösterge), CA, Kırmızı 27 mcd, RH DP 10,2mm product from our company.
